Φ43x160mm AC Cross Flow Fan PC43B1A160A Φ43x160mm AC Cross Flow Fan PC43B1A160A

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Share this:

Technical Description

General Characters

1-1

Rated Voltage

115 VAC

1-2

Frequency

50/60 Hz

1-3

Rated Speed

2900 RPM

1-4

Input Current

0.26 A

1-5

Input Power

17 W

1-6

Acoustical Noise

38 dBA

1-7

Life Expectance

30,000 Hours

At nominal supply voltage, full speed room temperature 20℃.

1-8

Direction of Rotation

Clockwise

seen on rotor

1-9

Air Flow

42.37 CFM / 72 m³/H

1-10

Air Pressure

2.24 mmH2O / 22 Pa



Mechanical Characters

2-1

Dimension

60mm X 60mm X 218mm(see dimension drawing)

2-2

Material of Impeller

Aluminum alloy

2-3

Number of Blades

28

2-4

Bearing System

NMB ball bearing

2-5

Lead Wire

Red, Black, AWG#20



Environmental Characters

3-1

Operating Temperature

-20℃ to 70℃

3-2

Storage Temperature

-40℃ to 80℃

3-3

Operating Humidity

5% to 90% RH

3-4

Storage Humidity

5% to 95% RH





Curve and Draw

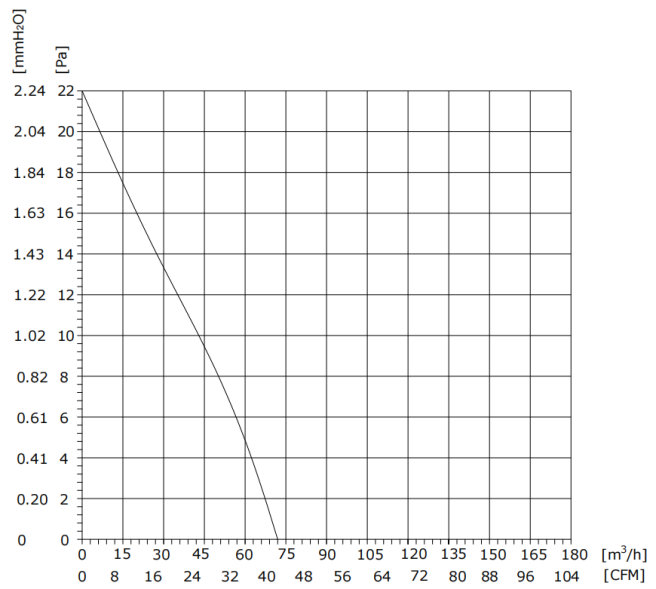

Performance Curve





Testing Condition:

Input Voltage----Operating voltage (230VAC/50Hz)

Temperature-----Room temperature

Humidity---------65%RH

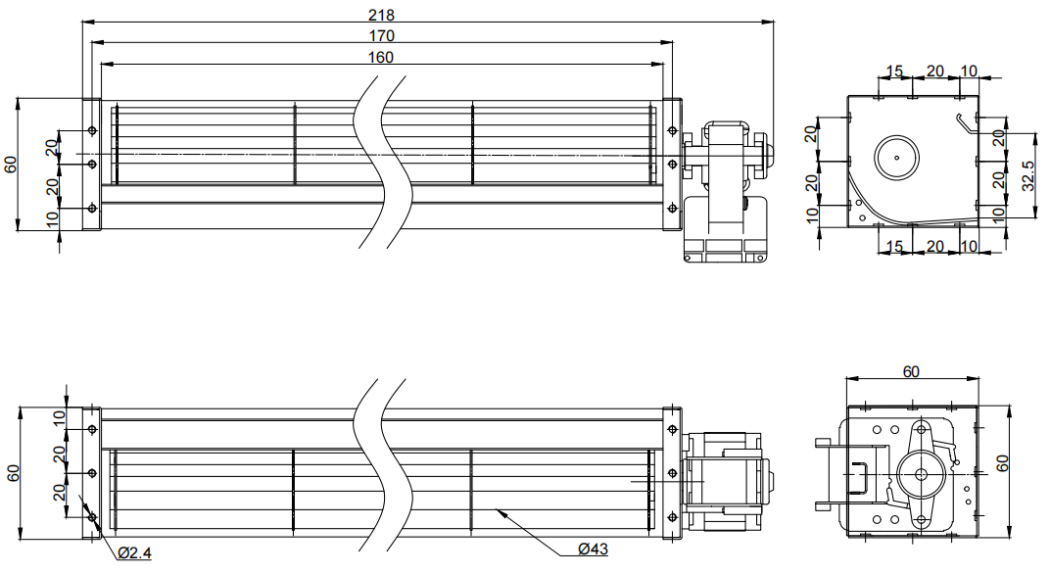

Outline Drawing



Note:

1.Connection line: Red, Black, AWG#20;

2.Red=Live Line, Black=Null line.
