140mm EC Single Inlet Blower PS3N140B2E-TZ0 was created especially for Decentralized Ventilation Units. The product is commonly utilized in duct pressurization fans, distributed total heat exchangers, freestanding quiet supply fans, compact air handling units (AHUs), independent supply/exhaust modules for decentralized ventilation systems, and other applications. Additionally, it provides high static pressure, low noise, and simple-to-integrate airflow performance for a variety of distributed air handling systems, making it appropriate for building decentralized ventilation needs like exhaust ventilation in residential kitchens and bathrooms, independent fresh air supply in school classrooms, and office cubicle ventilation.
When compared to conventional AC induction motors, the unit is high-efficiency EC motor achieves an efficiency of over 85%, resulting in 30% to 50% energy savings under all working situations. Its 0–10 VDC/PWM dual-mode stepless speed control allows for real-time airflow modification depending on feedback from the decentralized ventilation system's air quality sensor and terminal static pressure. By doing this, energy waste from fixed-speed fans is eliminated and "demand-based ventilation" is achieved. The unit easily overcomes the resistance brought on by long duct runs, numerous supply branches, and high-efficiency filters in decentralized systems thanks to its forward-curved centrifugal impeller and optimized volute design, which maintain low-noise operation (60 dB(A)) even under high static pressure conditions of 700 Pa.
On request, we provide OEM modification services that include compatibility with silencer/filter box attachments, improved protection ratings (up to IP55), corrosion-resistant surface treatments, and special wiring layouts. PBM is a full-service supplier for dispersed ventilation and air purification solutions, not just a maker of fans.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 2000 RPM |
|
1-5 |
Input Current |
0.85 A |
|
1-6 |
Input Power |
115 W |
|
1-7 |
Air Flow |
382.53 CFM / 650 M³/H |
|
1-8 |
Static Pressure |
3.80 inH₂O / 950 Pa |
|
1-9 |
Acoustical Noise |
67 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
220 mm X 245 mm X 130 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA66+GF |
|
2-3 |
Number of Blades |
38 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#), DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

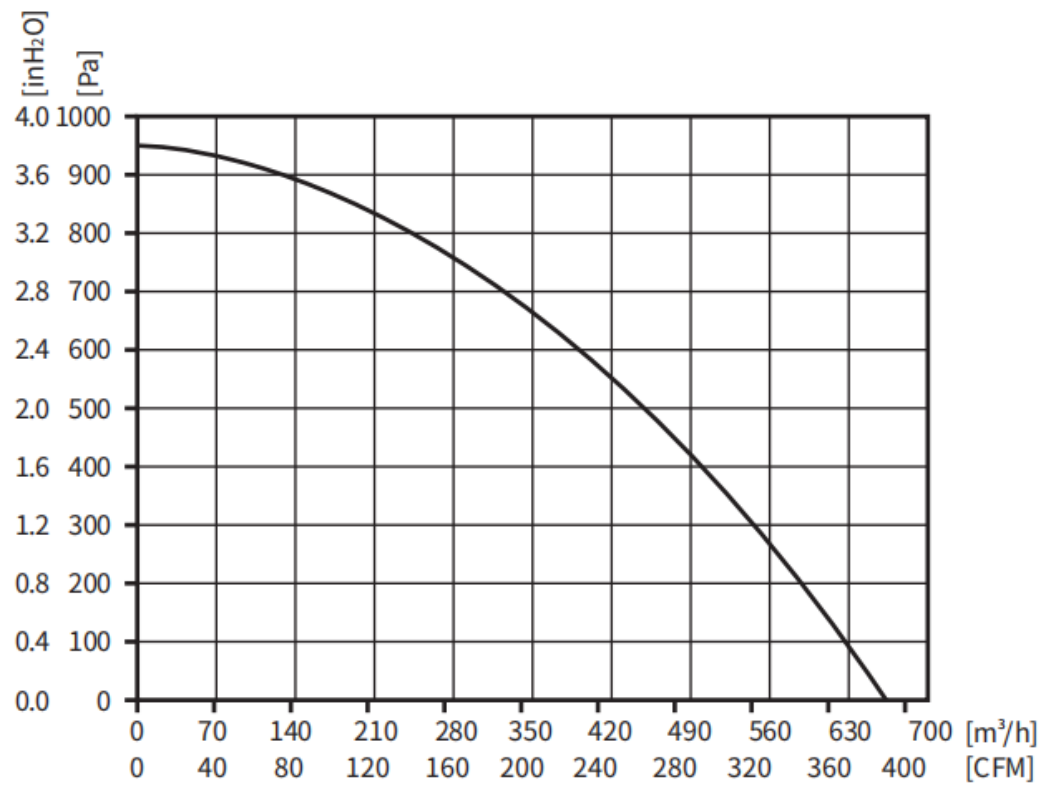

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

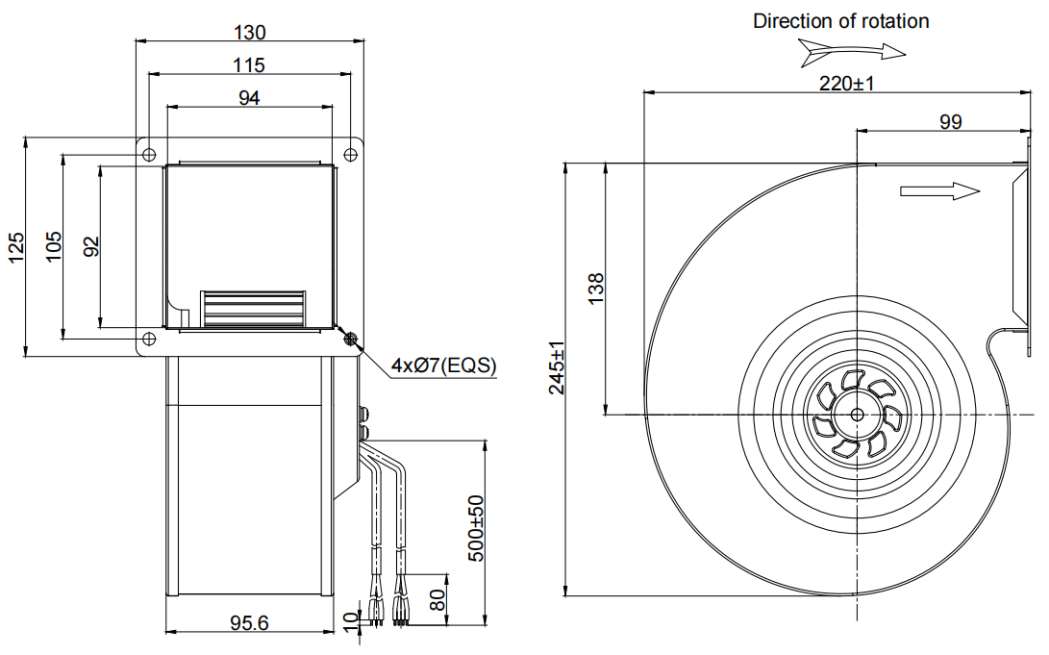

Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG24#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
