The PC150B2A368L 150mm AC cross flow fan is a high‑performance AC‑driven solution purpose‑built for wide‑span laminar airflow in data center and electronics cooling applications, including cold aisle containment systems, server rack cooling, and high‑power power module thermal management. With its broad, even airflow distribution, this fan effectively addresses the most demanding heat dissipation challenges in modern IT infrastructure. As a dedicated cross flow fan for data center cold aisle and reliable AC fan for server rack and power supply cooling, it delivers consistent performance where uptime and thermal stability are critical.
PBM's cross flow fans are widely deployed in building ventilation systems—across factories, offices, and commercial spaces—as well as in electronics cooling, automotive ventilation systems, and industrial automation, efficiently promoting air circulation and maintaining indoor freshness. With over 15 years of focused expertise in EC/AC motors and fan technology, PBM provides not just fan components but end‑to‑end industrial HVAC and thermal solutions integrated throughout your entire R&D process. Whether you need a high‑airflow crossflow fan for factory ventilation or a quiet AC fan for office air circulation, we deliver tailored performance.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Rated Speed |
1100 RPM |
|
1-4 |
Input Current |
0.80 A |
|
1-5 |
Input Power |
120 W |
|
1-6 |
Acoustical Noise |
63 dBA |
|
1-7 |
Life Expectancy |
30,000 Hours At nominal supply voltage, full speed room temperature is 20℃. |
|
1-8 |
Direction of Rotation |
Clockwise seen on rotor |
|
1-9 |
Airflow |
1430 m³/H |
|
1-10 |
Air Pressure |
105 Pa |
Mechanical Characters
|
2-1 |
Dimension |
see dimension drawing |
|
2-2 |
Material of Impeller |
Aluminum alloy |
|
2-3 |
Number of Blades |
28 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red, Black, AWG #20 |
Environmental Characters
|
3-1 |
Operating Temperature |
-20℃ to 70℃ |
|
3-2 |
Storage Temperature |
-40℃ to 80℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

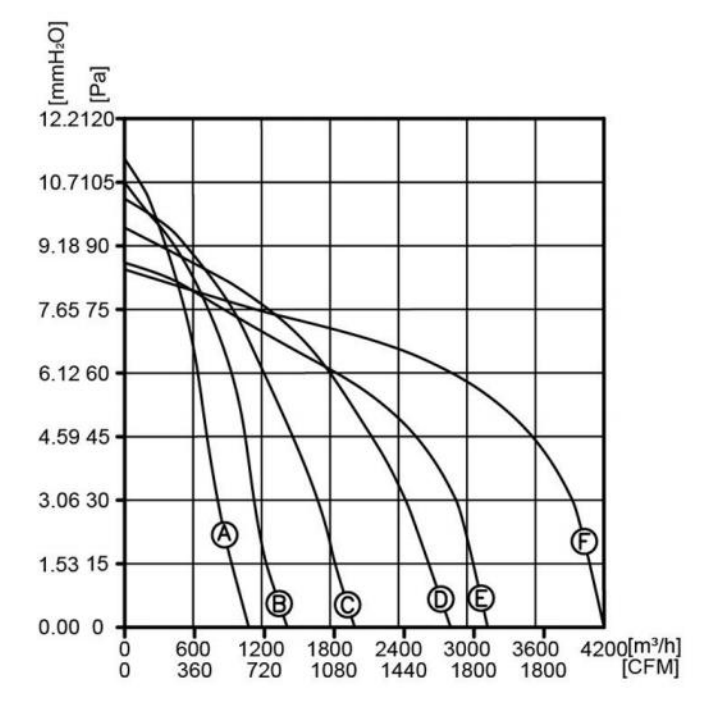

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

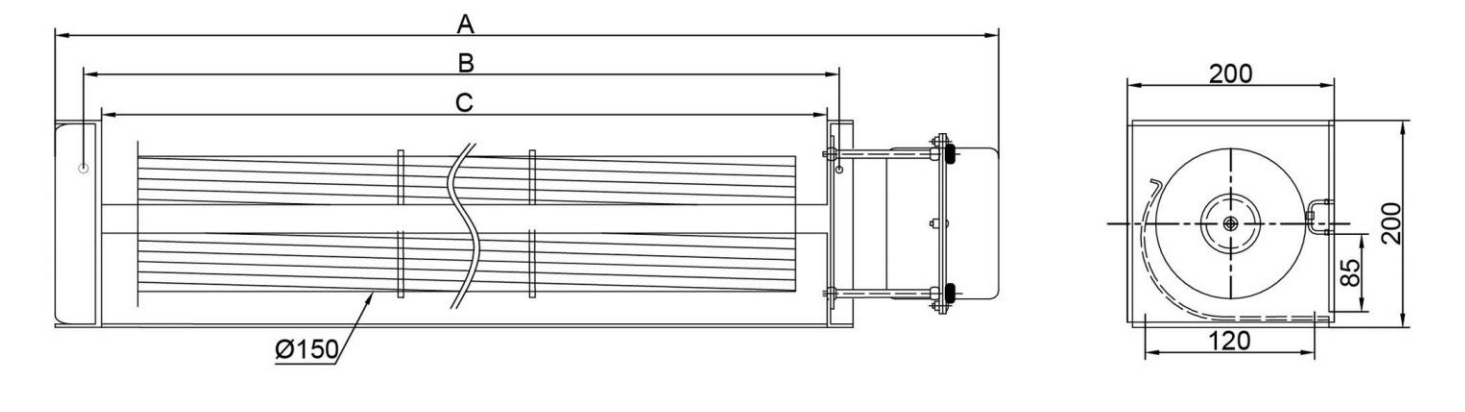

Outline Drawing
Note:
1.Connection line: Red, Black, AWG#20;
2.Red=Live Line, Black=Null line.
