The PS3N180B24-TZ0 180mm IP55 EC‑DC single inlet centrifugal blower is a high‑efficiency, safety extra‑low voltage (SELV) fan engineered for demanding air treatment and ventilation applications that require ultra‑high static pressure and robust environmental protection – including air purification and cleanroom systems that rely on 900 Pa high static pressure to overcome combined resistance from HEPA and activated carbon filters for consistent clean air delivery, as well as decentralized and centralized ventilation systems such as office ventilation, fresh air handling units, and duct booster fans that must overcome resistance from long duct runs and multiple branch supply lines. This blower is also well‑suited for industrial dust collection and dehumidification equipment in workshop exhaust and material handling systems where reliable airflow is critical.
Operating at 24V DC rated voltage with an IP55‑rated fully sealed enclosure, this high static pressure SELV blower for HEPA‑filtered cleanrooms and 900 Pa duct booster fan for long‑run ventilation delivers dependable, energy‑saving performance while ensuring safe low‑voltage operation in challenging environments. PBM's OEM customization services cover multiple dimensions – including custom lead wire configurations, upgraded ingress protection (IP) ratings, corrosion‑resistant surface treatments, and optional silencer or filter box accessories – tailored specifically for air purification systems, ventilation networks, and other specialized applications. Whether you need a 900 Pa blower for industrial dust collection, a corrosion‑treated fan for dehumidifier integration, or a silencer‑equipped centrifugal fan for quiet office environments, PBM delivers precision‑engineered solutions with full engineering support.
General Characters
|
1-1 |
Rated Voltage |
24 VDC |
|
1-2 |
Operating Voltage |
16~28 VDC |
|
1-3 |
Rated Speed |
1350 RPM |
|
1-4 |
Input Current |
5.2 A |
|
1-5 |
Input Power |
124.8 W |
|
1-6 |
Air Flow |
435.49 CFM / 740 M³/H |
|
1-7 |
Static Pressure |
3.60 inH2O / 900 Pa |
|
1-8 |
Acoustical Noise |
66 dB(A) |
|
1-9 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-10 |
Insulation Class |
Class B |
|
1-11 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-13 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-14 |
Protection Type |
IP55 |
|
1-15 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
262 mm X 279 mm X 169.5 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Cold rolled steel sheet |
|
2-3 |
Number of Blades |
38 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red, Blue(AWG18#)； Yellow, White(AWG24#)
|
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

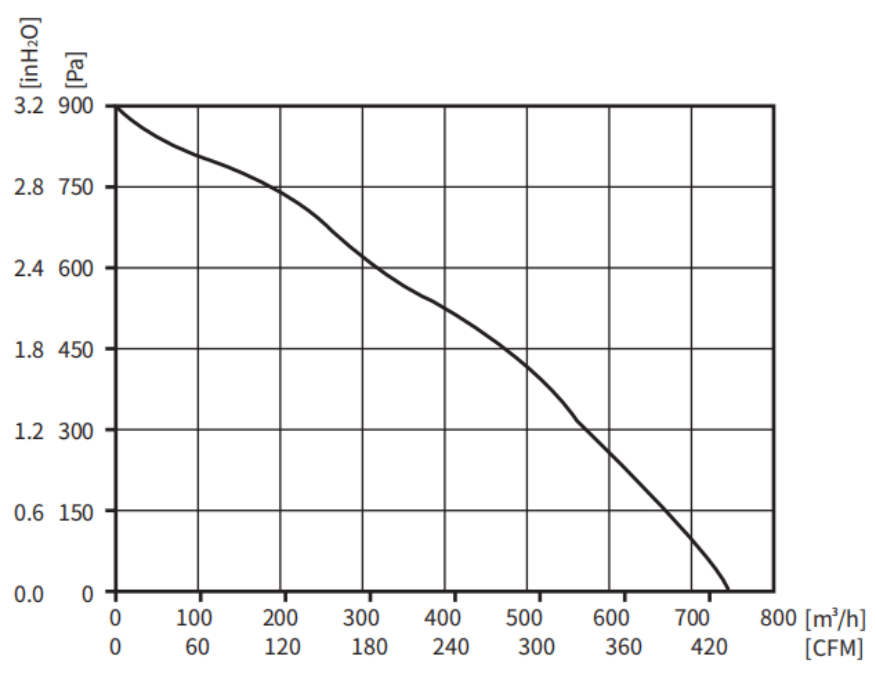

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (24VDC)
Temperature-----Room temperature
Humidity---------65%RH

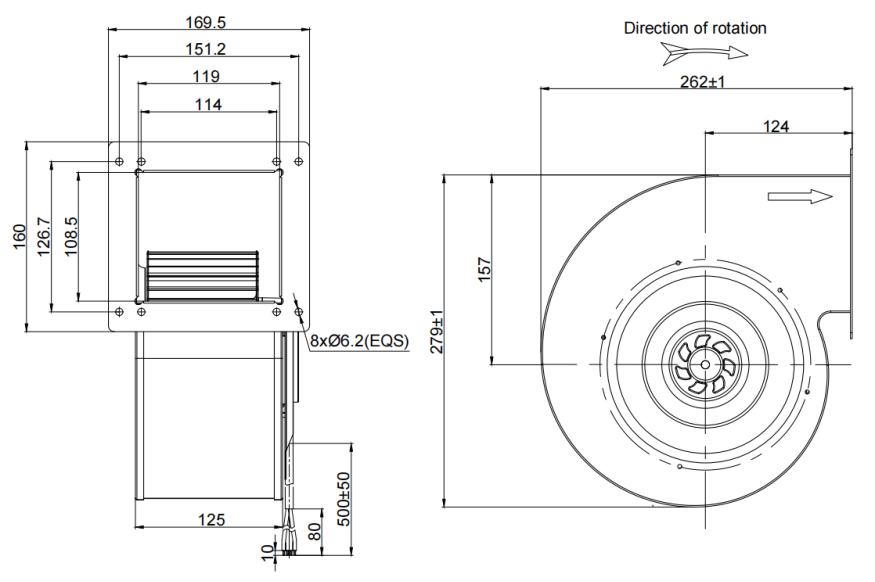

Outline Drawing
Note:
1.Connection line: Red, Blue(AWG18#)； Yellow, White(AWG24#)
2.DC: Red=Voltage Intput 24VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
