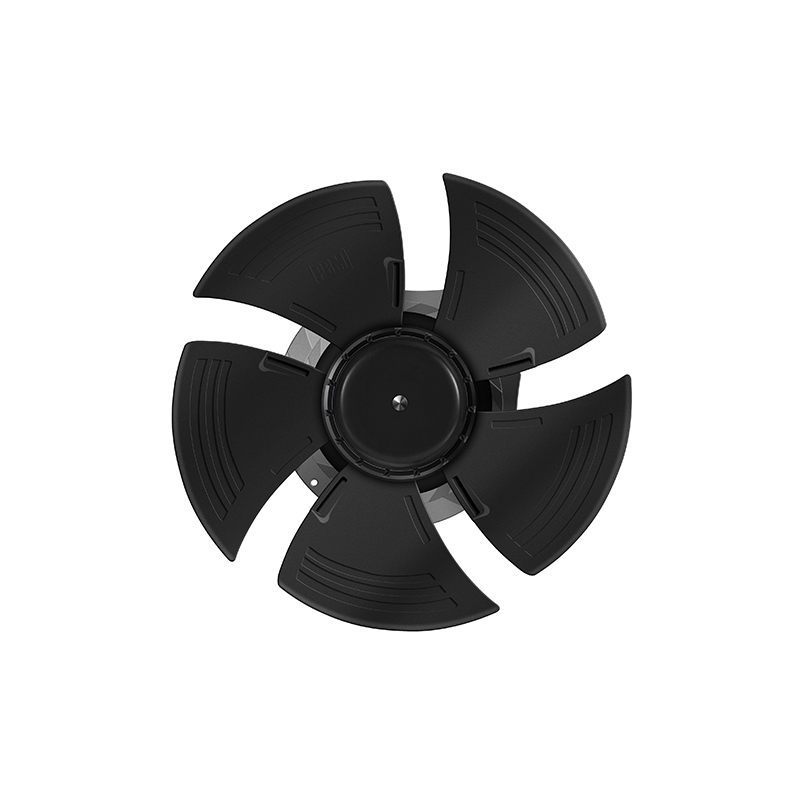

The PA3N200B2E-RN0 Φ200×72.5mm IP55 EC‑AC axial fan is a fully sealed, high‑efficiency ventilation solution engineered for large‑flow applications that demand robust environmental protection and superior energy performance – including HVAC air handling systems, industrial ventilation equipment, and greenhouse and agricultural facility ventilation. Operating at 230V AC rated voltage, 3000 RPM, delivering 1150 m³/h high‑capacity airflow and 310 Pa static pressure, this IP55 rated axial fan for HVAC systems and industrial exhaust fan for greenhouse ventilation leverages the axial airflow pattern – with intake and exhaust along the same axis – to achieve high‑volume, low‑pressure‑drop air delivery, making it particularly well‑suited for large‑area, rapid ventilation scenarios.
With its fully dust‑tight and water‑resistant IP55 enclosure, the PA3N200B2E-RN0 provides a high‑protection axial fan for agricultural climate control that maintains stable, reliable performance even in challenging environments such as greenhouses, livestock facilities, and industrial plants where moisture, dust, and particulate matter are persistent concerns. Whether you are developing HVAC systems, industrial ventilation setups, or greenhouse climate control solutions, this fan delivers the airflow, efficiency, and durability your project demands.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 3000 RPM |
|
1-5 |
Input Current |
0.45 A |
|
1-6 |
Input Power |
58 W |
|
1-7 |
Air Flow |
676.78 CFM / 1150 M³/H |
|
1-8 |
Static Pressure |
1.24 inH2O / 310 Pa |
|
1-9 |
Acoustical Noise |
62 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø200 mm X 72.5 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA66+GF |
|
2-3 |
Number of Blades |
7 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#)，DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |
Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH
Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG24#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
