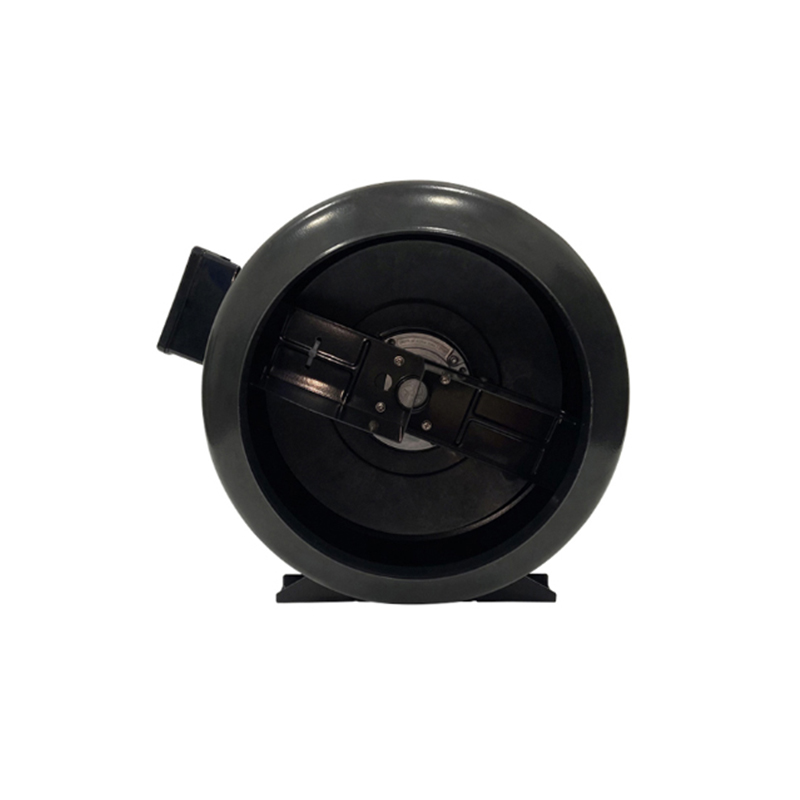

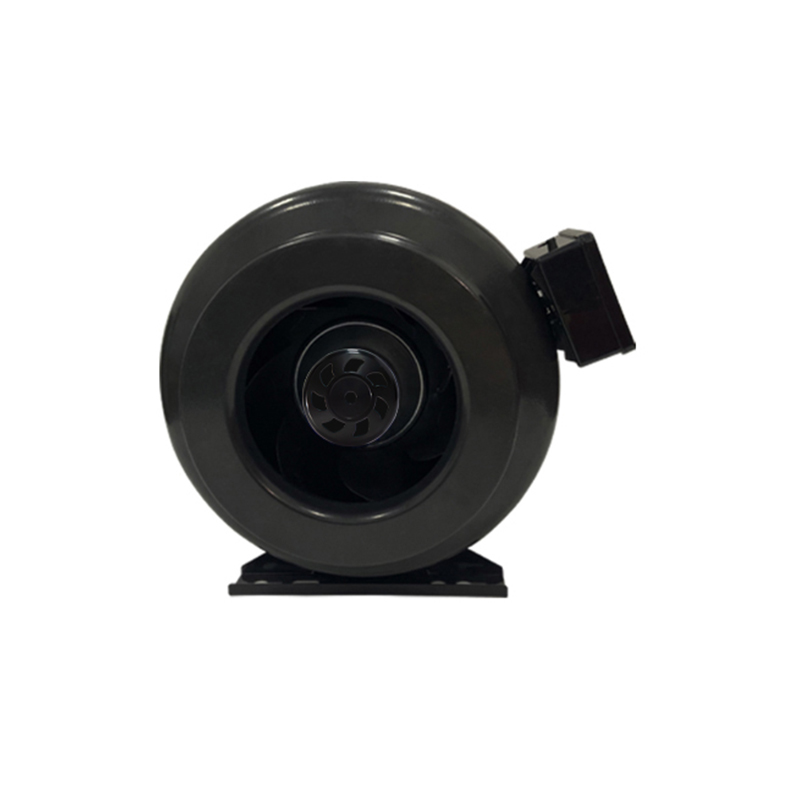

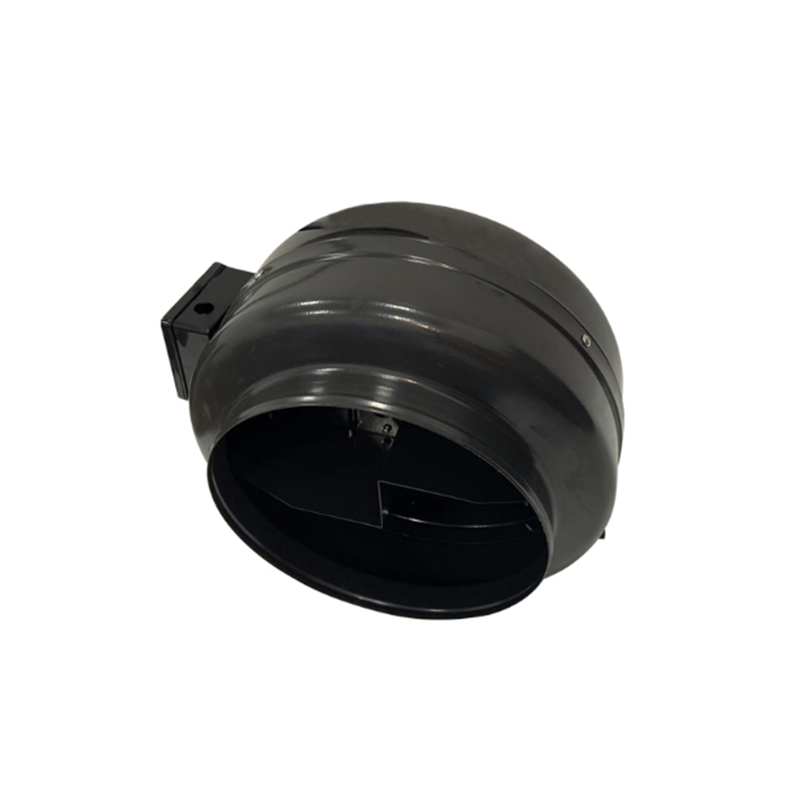

The 250mm EC duct fan is a perfect power core for big commercial kitchens since it employs a 230V EC motor with a speed of 2700 RPM and a power consumption of just 170W. It can produce a huge air volume of 1200 m³/h and a high static pressure of 1000 Pa with a noise level as low as 71 dB(A). Exhaust ducts in hotel kitchens and central kitchens are frequently 20–30 meters long, connecting several fume filters, fire dampers, and bends that create a lot of resistance. This resistance is readily overcome by our fan's 1000 Pa static pressure, which guarantees quick fume extraction from every burner and stops smells and backflow. Strong negative pressure may be applied to six to eight wok burners at once with the air volume of 1200 m³/h. Compared to conventional AC fans, its low power consumption of 170W enables long-term continuous operation, saving more than 50% of energy. The front hall eating area will not be disturbed even if it is mounted in the ceiling because of its low noise level of 71 dB(A).
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed |
2700 RPM |
|
1-5 |
Input Current |
1.1 A |
|
1-6 |
Input Power |
170 W |
|
1-7 |
Air Flow |
706.20 CFM / 1200 M³/H |
|
1-8 |
Static Pressure |
4.00 inH₂O / 1000 Pa |
|
1-9 |
Acoustical Noise |
71 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
386 mm X 396mm X 221mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA66+25%GF |
|
2-3 |
Number of Blades |
7 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#), DC (AWG22 #) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

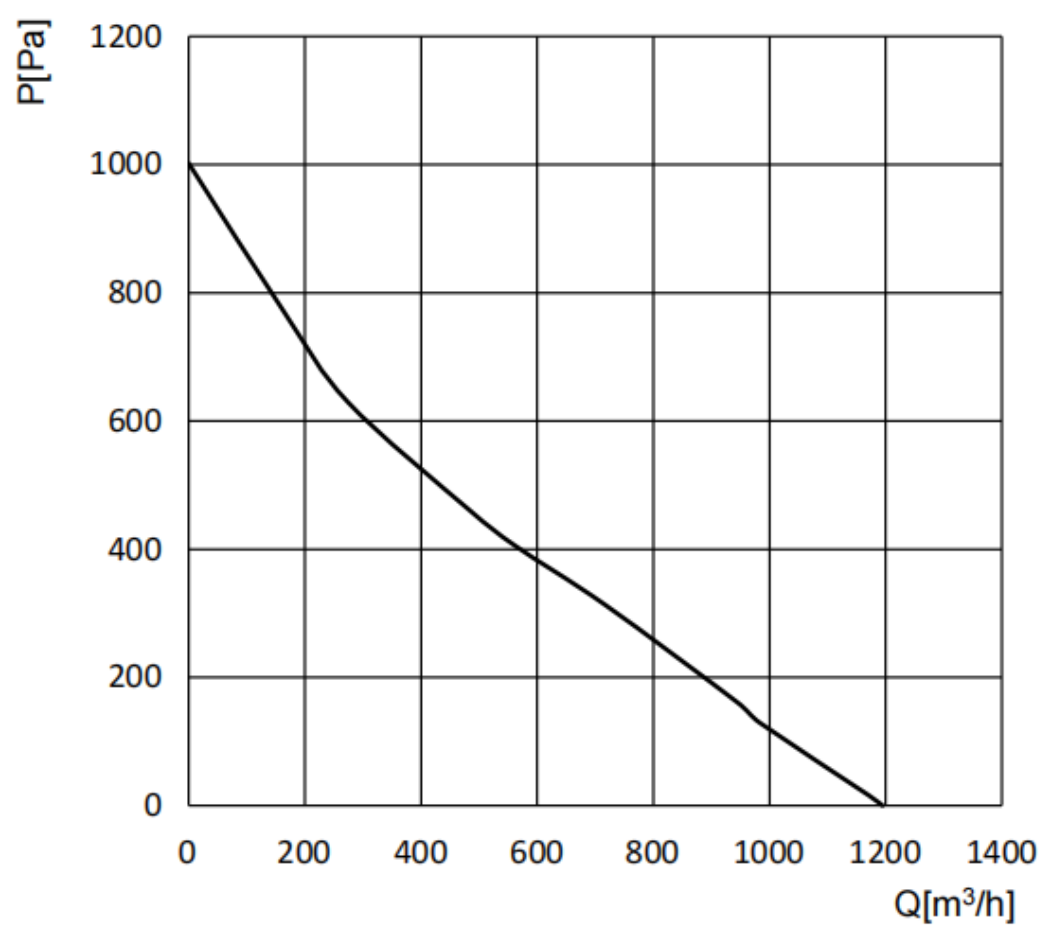

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

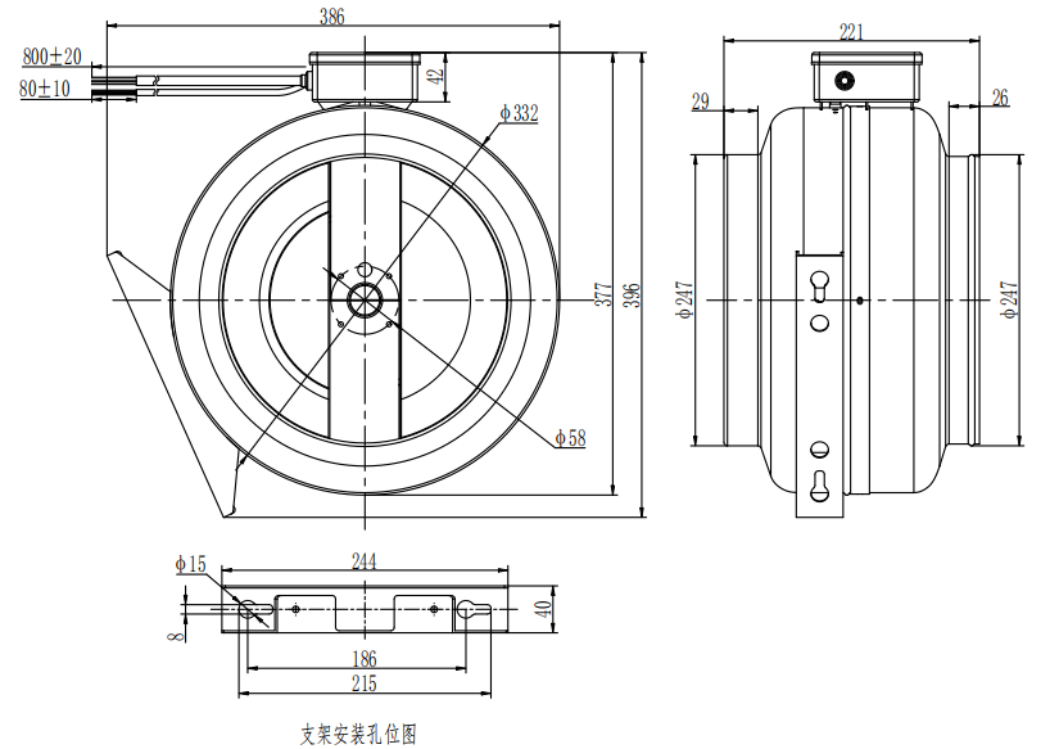

Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG22#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
