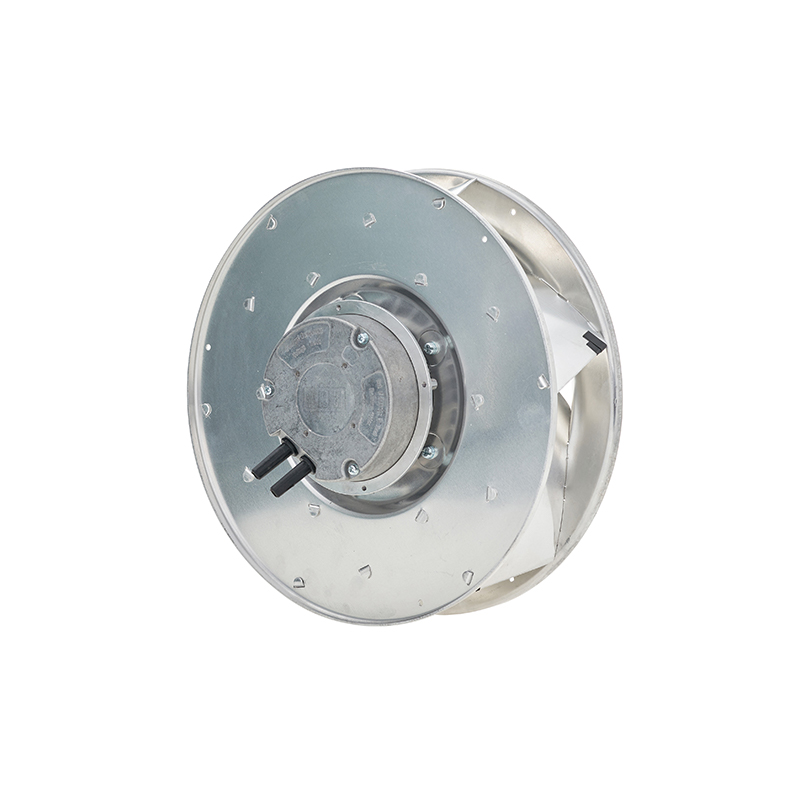

The PB3N310B2E-MZ0 310mm IP55 EC-AC Backward Curved Centrifugal Fan is specifically engineered for air handling units (AHU) and modular air conditioning systems including fresh air systems, central air conditioning fan coils, and industrial ventilation units — delivering high-efficiency AC-driven performance in demanding industrial ventilation scenarios requiring high static pressure with waterproof and dustproof protection.
Powered by EC motor technology, this backward curved centrifugal fan delivers significant energy savings compared to traditional AC induction motors across all operating conditions. The motor generates minimal waste heat emissions into the circulating airstream, imposing no additional thermal load on temperature- and humidity-controlled cleanroom HVAC systems.
PBM backward curved centrifugal fans are widely used across industrial and commercial ventilation, HVAC systems, cleanrooms, and other critical environments.
Choose the PB3N310B2E-MZ0 for a high static pressure, low noise, IP55 EC-AC backward curved centrifugal fan for your most demanding AHU and HVAC applications.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 2100 RPM |
|
1-5 |
Input Current |
1.55 A |
|
1-6 |
Input Power |
220 W |
|
1-7 |
Air Flow |
1471.25 CFM / 2500 M³/H |
|
1-8 |
Static Pressure |
2.60 inH2O / 650 Pa |
|
1-9 |
Acoustical Noise |
66 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø316 mm X 133.5 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminium sheet |
|
2-3 |
Number of Blades |
6 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#)，DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

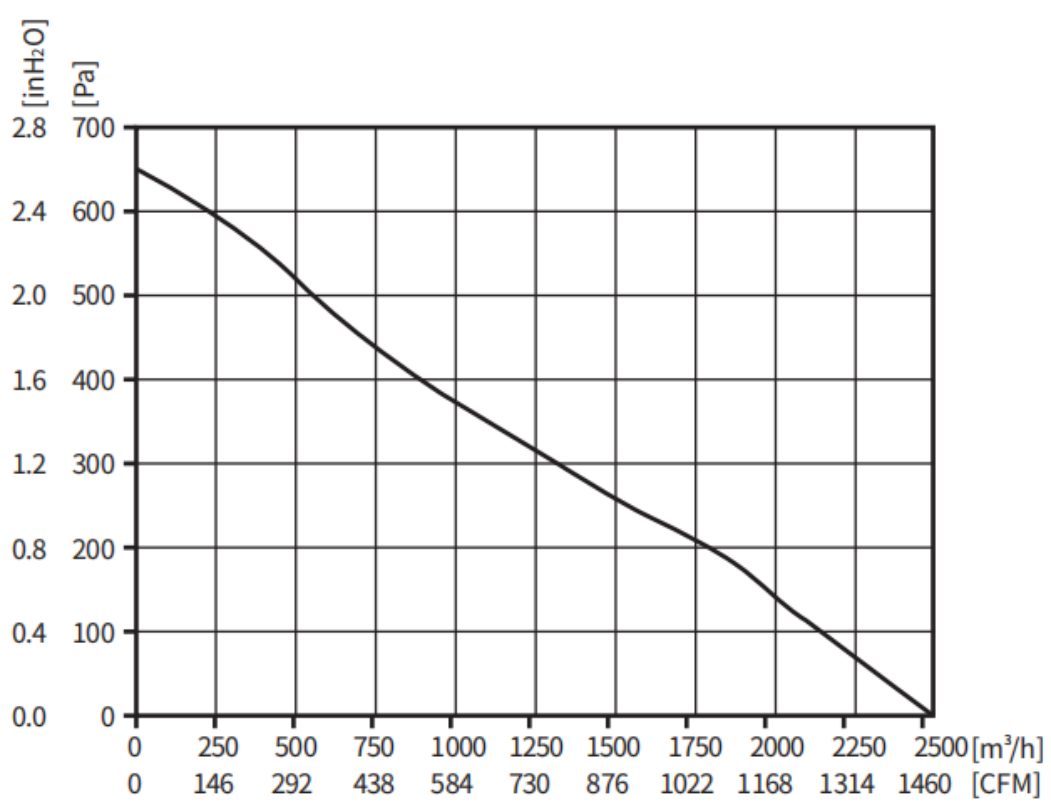

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

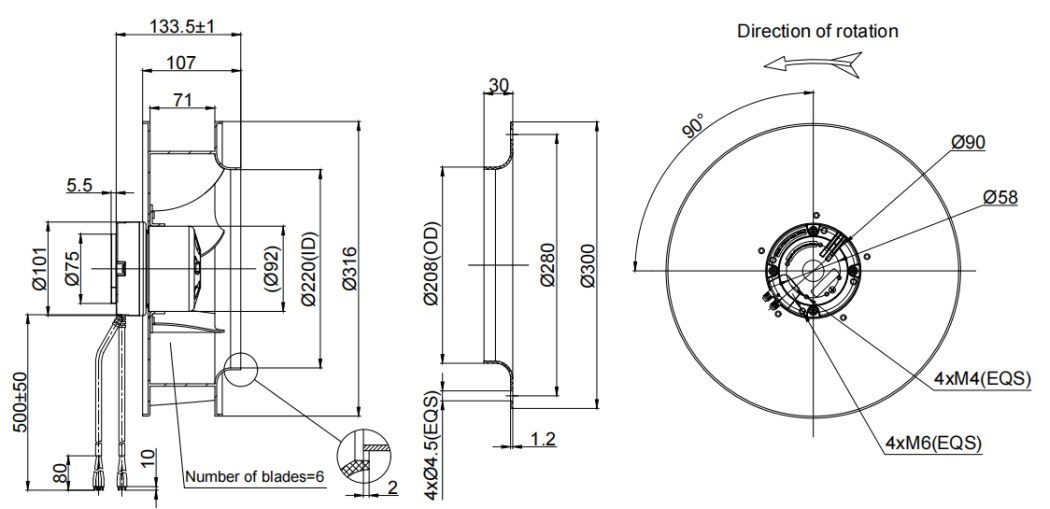

Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG24#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
