400mm Waterproof IP55 EC-AC Backward Curved Centrifugal Fan with Support Bracket PK3N400B2E-ZW5 400mm Waterproof IP55 EC-AC Backward Curved Centrifugal Fan with Support Bracket PK3N400B2E-ZW5

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Share this:

Technical Description

General Characters

1-1

Rated Voltage

230 VAC

1-2

Frequency

50/60 Hz

1-3

Operating Voltage

184~270 VAC

1-4

Rated Speed 1750 RPM

1-5

Input Current

3.1 A

1-6

Input Power

700 W

1-7

Air Flow

3942.95 CFM / 6700 M³/H

1-8

Static Pressure

4.00 inH2O / 1000 Pa

1-9

Acoustical Noise

83 dB(A)

1-10

Life Expectance

50,000 Hours(L10)

At 40℃ room, humidity 15%~65%RH.

1-11

Insulation Class

Class F

1-13

Motor Protection

Locked rotor protection

Polarity protection

Automatic restart capability

1-14

Speed Control

Control input 0~10VDC / PWM

1-15

Protection Type

IP55

1-17

Signal Output

FG (Frequency Generator)



Mechanical Characters

2-1

Dimension

500mm X 500mm X 350.5mm (see dimension drawing)

2-2

Material of Impeller

Aluminium sheet

2-3

Number of Blades

8

2-4

Bearing System

NMB ball bearing

2-5

Lead Wire

AC (AWG18#),DC (AWG24#)



Environmental Characters

3-1

Operating Temperature

-25℃ to 60℃

3-2

Storage Temperature

-40℃ to 75℃

3-3

Operating Humidity

5% to 90% RH

3-4

Storage Humidity

5% to 95% RH





Curve and Draw

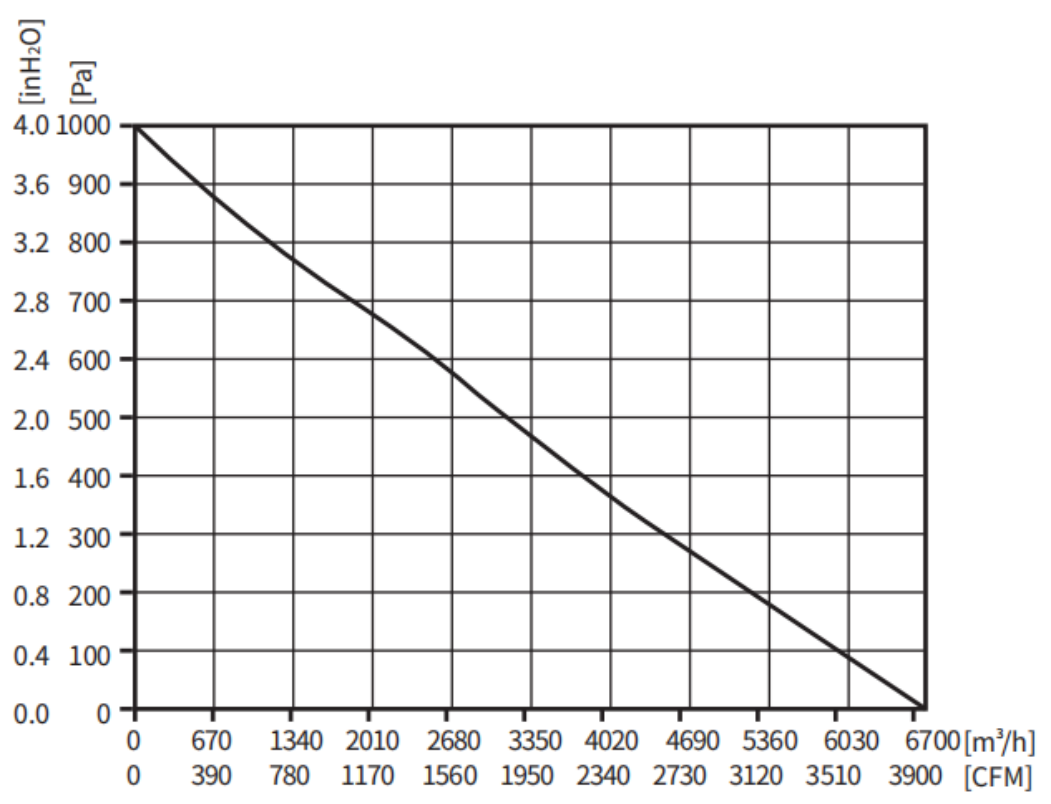

Performance Curve





Testing Condition:

Input Voltage----Operating voltage (230VAC/50Hz)

Temperature-----Room temperature

Humidity---------65%RH

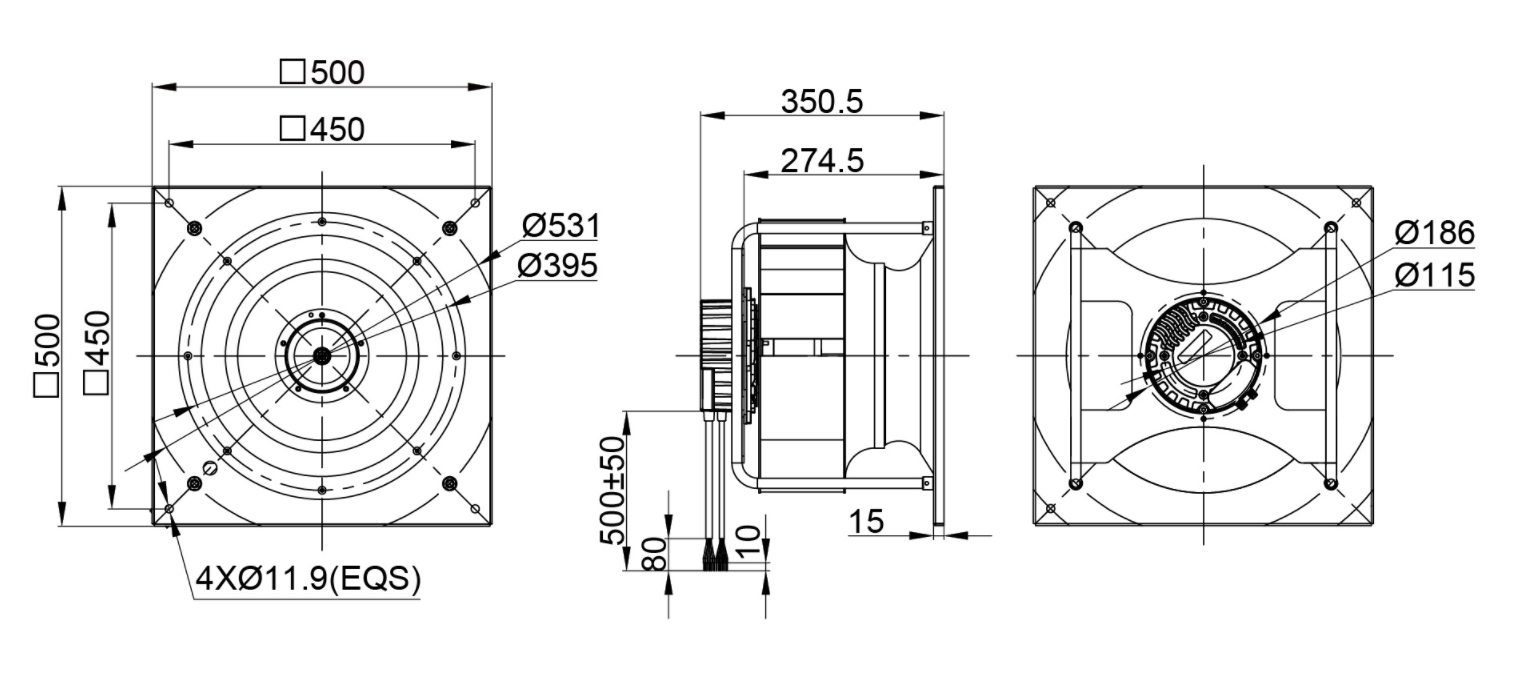

Outline Drawing



Note:

1.Connection line: AC(5×AWG18#),DC(6×AWG24#)

2.AC: Brown=Live Line,Black=Null Line,Green & Yellow=Protecting Earthing,White=NC,Gray=COM;

3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, Blue=GND, White=Tach output, Brown=RSA, Gray=RSB ;
