400mm EC Centrifugal Fan with Bracket from PBM is made especially for central dust collecting systems and industrial dust management. It has an airflow of 7400 m³/h, a static pressure of up to 1000 Pa, a speed of 2000 RPM, a power of 1300 W, an IP55 protection grade, and a noise level of 85 dB (A). It is powered by a 380V EC motor. Direct installation on duct supports or dust collector platforms is made possible by the bracket design. The effective removal of woodworking dust, welding fumes, and feed particles is ensured by the ultra-high static pressure of 1000 Pa, which readily overcomes the resistance of bag filters, cyclone separators, and long-distance horizontal ducts. Several dust-producing locations can be covered at once by the 7400 m³/h airflow. Significant energy savings are achieved by the EC motor's capability for 0–10V/PWM speed control and automated adjustment using a differential pressure sensor. It is the perfect dust-collecting power source for furniture manufacturers, cement packaging lines, and grain processing facilities because of its IP55 protection, which adapts to high-dust and humid situations, and its extended service life of 50,000 hours, which guarantees uninterrupted industrial output.
General Characters
|
1-1 |
Rated Voltage |
380 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
304–456 VAC |
|
1-4 |
Rated Speed | 2000 RPM |
|
1-5 |
Input Current |
1.2 A |
|
1-6 |
Input Power |
1300 W |
|
1-7 |
Air Flow |
4354.90 CFM / 7400 M³/H |
|
1-8 |
Static Pressure |
4.00 inH₂O / 1000 Pa |
|
1-9 |
Acoustical Noise |
85 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class F |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
500 mm X 500mm X 350.5mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminium sheet |
|
2-3 |
Number of Blades |
8 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG18#), DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |
Performance Curve
Testing Condition:
Input Voltage----Operating voltage (380VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

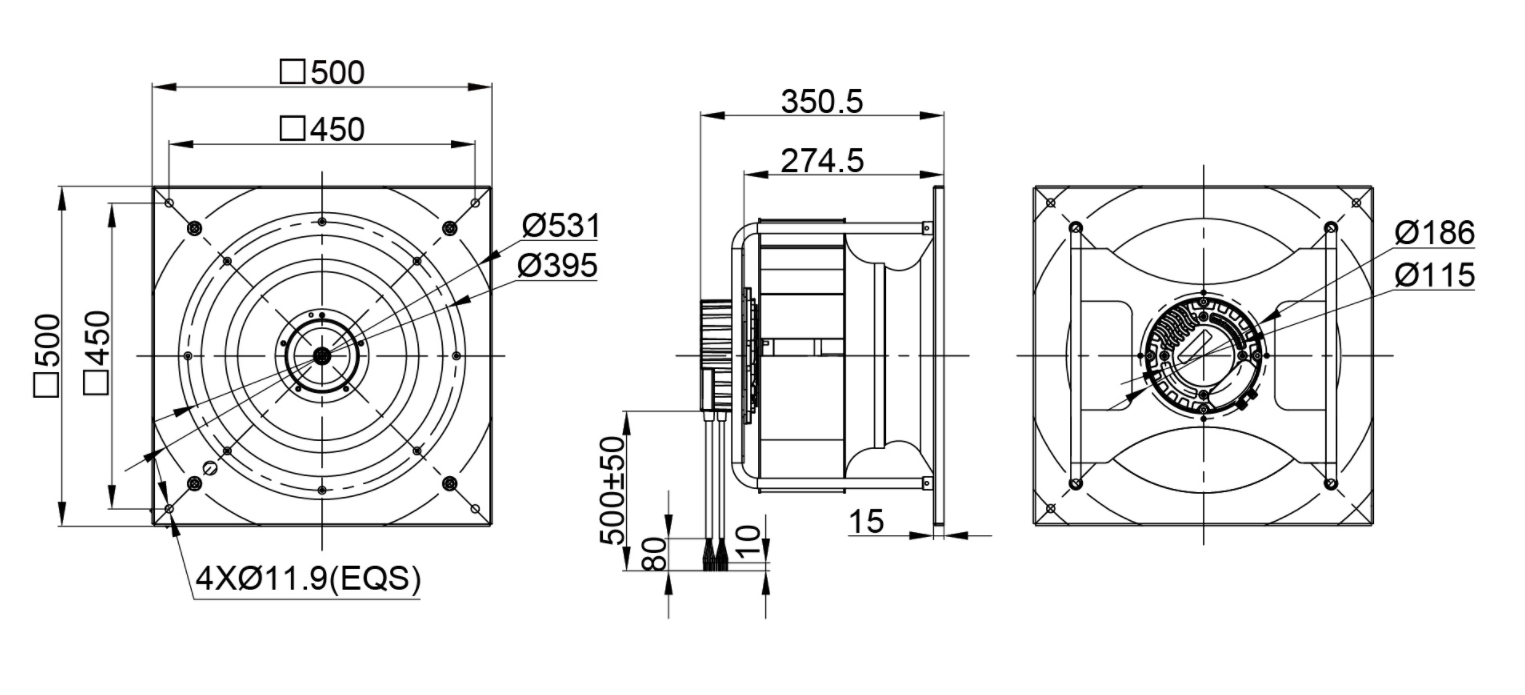

Outline Drawing
Note:
1.Connection line: AC(6×AWG18#)，DC(6×AWG24#)
2.AC: Brown=L1(R)，Blue=L2(S)，Black=L3(T)，Green & Yellow=Protecting Earthing,White=NC，Gray=COM;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, Blue=GND, White=Tach output, Brown=RSA,Gray=RSB ;
