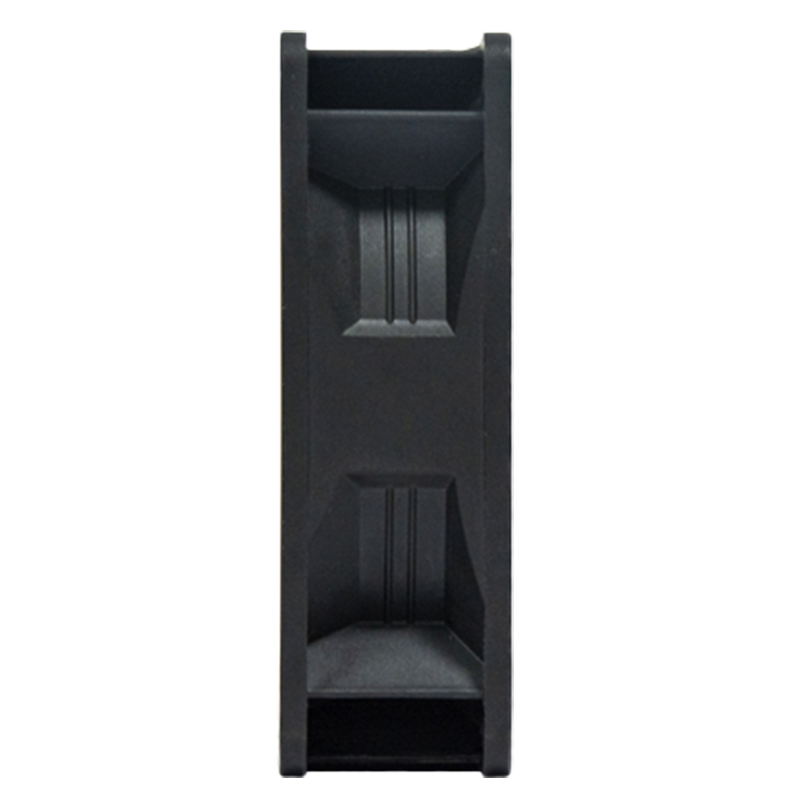

The PA4028B24H 40x40x28mm EC-DC compact axial fan is a high pressure axial fan for medical imaging equipment and other high‑performance, compact applications. It is specifically designed for medical and healthcare devices, including axial fan for ventilator and oxygen concentrator, sterilizer cooling, and laboratory cooling equipment. This compact 4028 axial fan for communication base station also serves industrial, communications, consumer electronics, and HVAC fields.
Operating on a 24V DC rated voltage, it features a high‑efficiency brushless DC (BLDC) motor drive. With its balanced airflow‑pressure characteristic curve and compact, standardized dimensions, it seamlessly replaces the industry‑standard 4028 mounting hole pattern. This makes it an ideal high performance axial fan for industrial frequency converter, server rack cooling, and power module thermal management.
PBM offers customized axial fan solutions covering multiple dimensions—from motor type to connector options. Whether you are developing industrial frequency converters, communication base station equipment, medical testing instruments, home appliances, or HVAC ventilation systems, the PBM technical team provides full engineering support—from sample confirmation and performance verification to mass production delivery.
General Characters
|
1-1 |
Rated Voltage |
24 VDC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
24 VDC |
|
1-4 |
Rated Speed |
10000 RPM |
|
1-5 |
Input Current |
0.11 A |
|
1-6 |
Input Power |
2.76 W |
|
1-7 |
Airflow |
21.48 M³/H |
|
1-8 |
Static Pressure |
118 Pa |
|
1-9 |
Acoustical Noise |
41.1 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP44 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Φ40x40x28 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Plastic |
|
2-3 |
Bearing System |
Ball bearing |
|
2-4 |
Lead Wire |
Red (+), Black (-): UL1007 #26 AWG (300 ± 10 mm) |
Environmental Characters
|
3-1 |
Operating Temperature |
-20℃ to 70℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 95% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

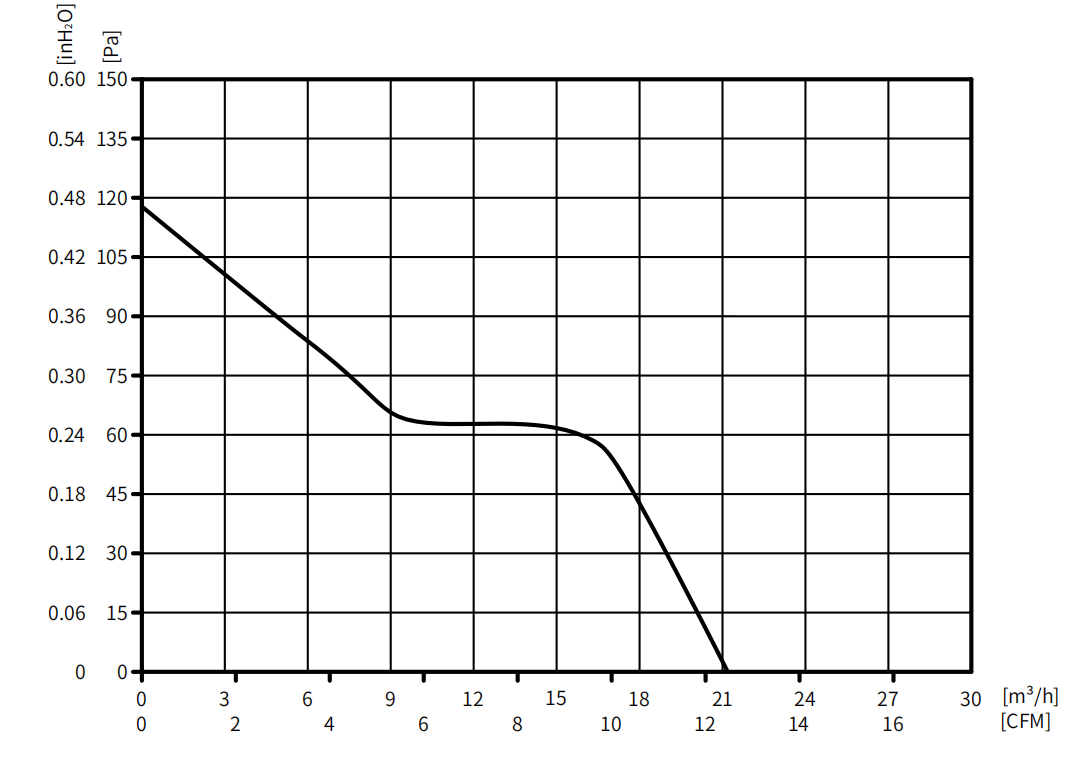

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (24VDC)
Temperature-----Room temperature
Humidity---------65%RH

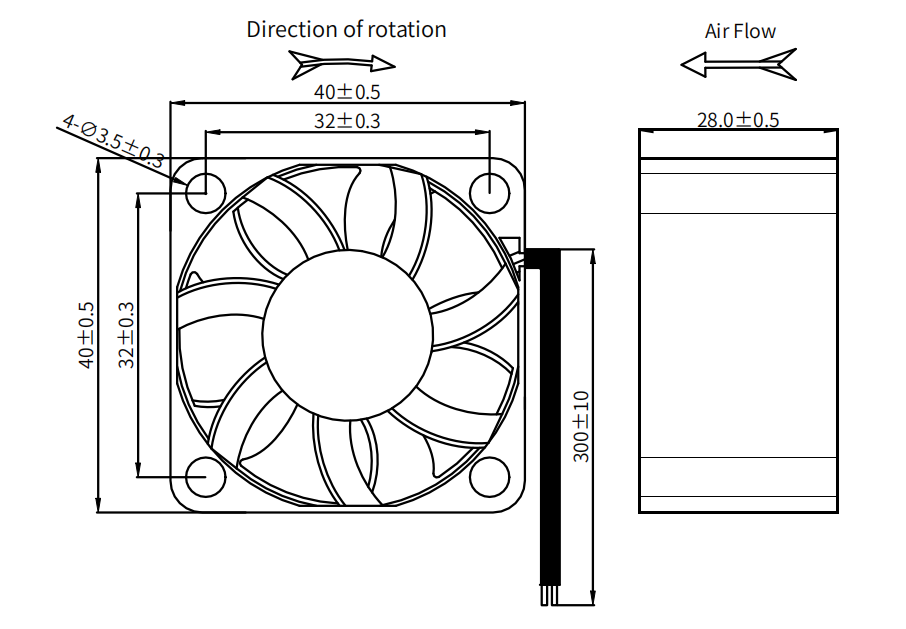

Outline Drawing
