Φ40x40x10mm EC-DC Axial Fan PA4010B24M

Name: Φ40x40x10mm EC-DC Axial Fan PA4010B24M
Brand: PBM
Price: 45.00 USD
Availability: InStock

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Technical Description

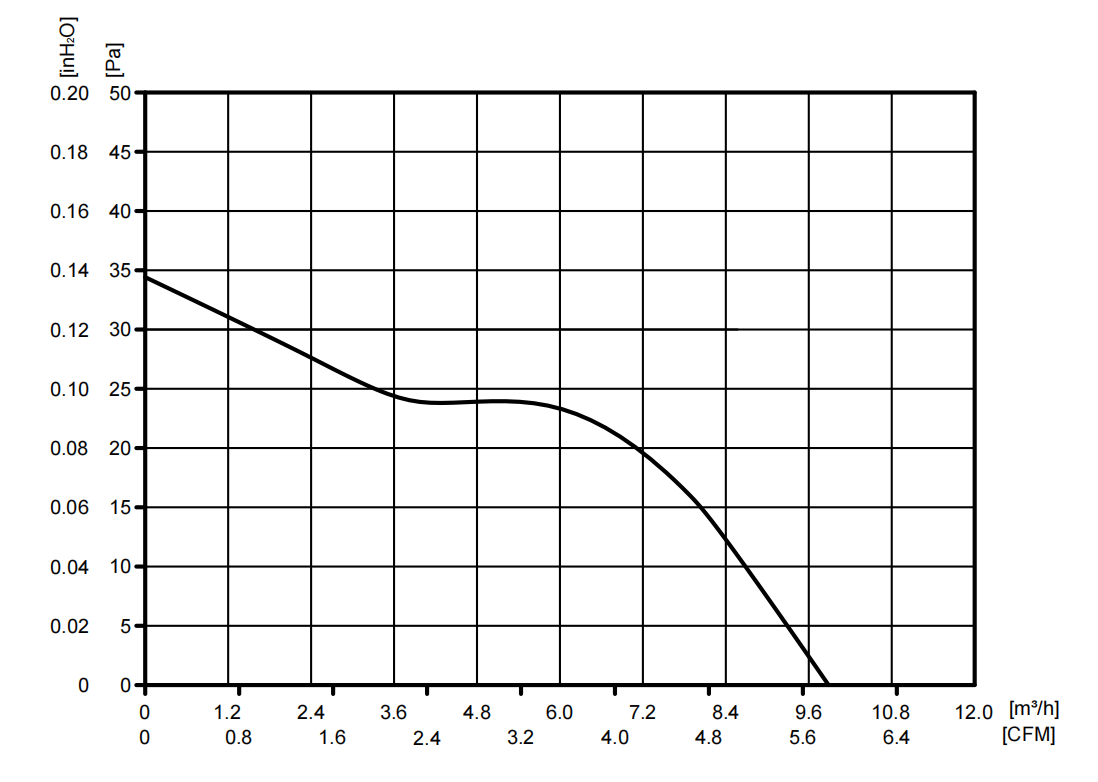

Curve and Draw

Certificate

Application Scopes

Packing Details

The PA4010B24M EC-DC axial fan is a high-efficiency, compact cooling solution designed for core application scenarios, including:

Telecommunications & electronics cooling – such as axial fan for base station cabinet, power module cooling, optical communication equipment, routers and switches;

Medical & hygiene equipment cooling—including axial fan for ventilator and oxygen concentrators, sterilization cabinets, and medical diagnostic instruments;

Industrial automation & electronics cooling—for variable frequency drive heatsink assembly, servo drive cooling, and PLC control cabinet;

Home appliances & consumer electronics ventilation—such as axial fan for projector, air purifiers, humidifiers, and ice makers;

HVAC & ventilation systems – providing reliable airflow for various heating, ventilation, and air conditioning applications.

This compact axial fan for telecom cabinet cooling and medical device thermal management delivers dependable performance in space‑constrained environments.

PBM offers OEM custom axial fan solutions tailored to your assembly requirements. Whether you are developing telecom equipment cabinets, medical diagnostic instruments, industrial automation control cabinets, home appliances, or HVAC ventilation systems, the PBM technical team provides full engineering support—from sample validation and performance verification to mass production delivery.

General Characters

1-1	Rated Voltage	24 VDC
1-2	Frequency	50/60 Hz
1-3	Operating Voltage	18~26.5 VDC
1-4	Rated Speed	6000 RPM
1-5	Input Current	0.05 A
1-6	Input Power	1.2 W
1-7	Air Flow	9.77 M³/H
1-8	Static Pressure	34.79 Pa
1-9	Acoustical Noise	24 dB(A)
1-10	Life Expectancy	50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH.
1-11	Insulation Class	Class B
1-13	Motor Protection	Locked rotor protection Polarity protection Automatic restart capability
1-14	Speed Control	Control input 0~10VDC / PWM
1-15	Protection Type	IP44
1-17	Signal Output	FG (Frequency Generator)

Mechanical Characters

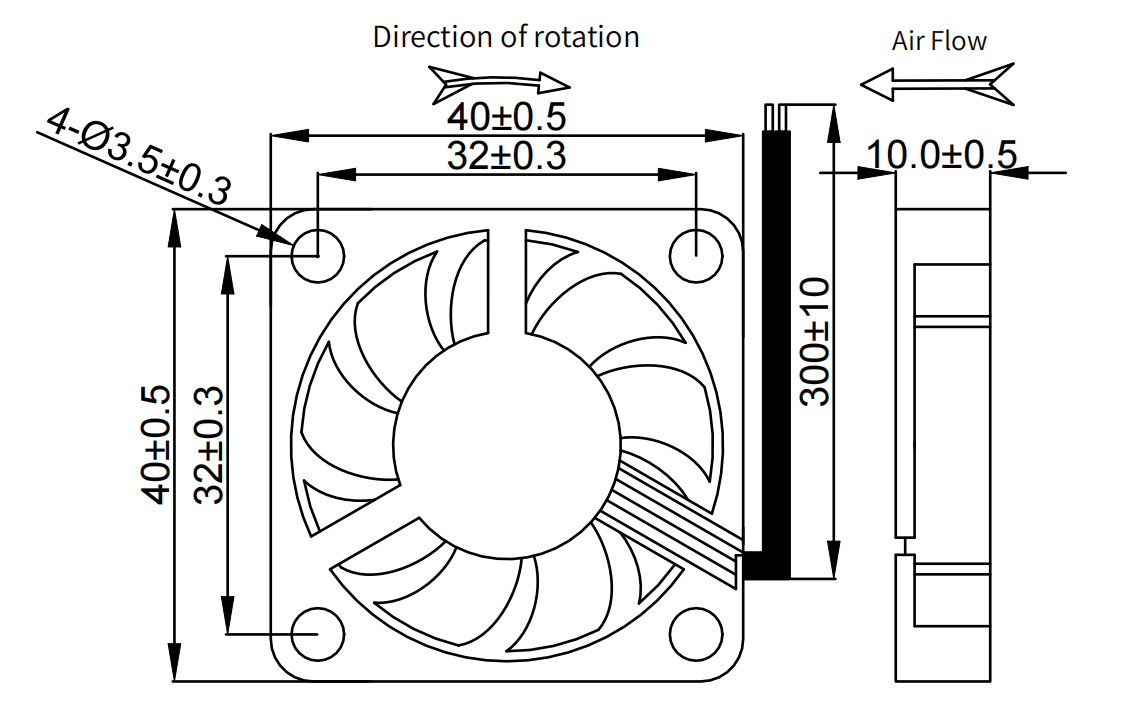

2-1	Dimension	Φ40x40x10 mm (see dimension drawing)
2-2	Material of Impeller	Plastic
2-3	Bearing System	Ball bearing
2-4	Lead Wire	Red (+), Black (-): UL1007 #26 AWG (300 ± 10 mm)
