450mm Waterproof IP55 EC-AC Backward Curved Centrifugal Fan with Support Bracket PK3N450B4E-ZW5 450mm Waterproof IP55 EC-AC Backward Curved Centrifugal Fan with Support Bracket PK3N450B4E-ZW5

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Share this:

Technical Description

General Characters

1-1

Rated Voltage

380 VAC

1-2

Frequency

50/60 Hz

1-3

Operating Voltage

304~456 VAC

1-4

Rated Speed 1800 RPM

1-5

Input Current

1.5 A

1-6

Input Power

1000 W

1-7

Air Flow

4237.20 CFM / 7200 M³/H

1-8

Static Pressure

2.80 inH2O / 700 Pa

1-9

Acoustical Noise

83 dB(A)

1-10

Life Expectance

50,000 Hours(L10)

At 40℃ room, humidity 15%~65%RH.

1-11

Insulation Class

Class F

1-13

Motor Protection

Locked rotor protection

Polarity protection

Automatic restart capability

1-14

Speed Control

Control input 0~10VDC / PWM

1-15

Protection Type

IP55

1-17

Signal Output

FG (Frequency Generator)



Mechanical Characters

2-1

Dimension

630mm X 630mm X 364.3mm (see dimension drawing)

2-2

Material of Impeller

Aluminium sheet

2-3

Number of Blades

6

2-4

Bearing System

NMB ball bearing

2-5

Lead Wire

AC (AWG18#),DC (AWG24#)



Environmental Characters

3-1

Operating Temperature

-25℃ to 60℃

3-2

Storage Temperature

-40℃ to 75℃

3-3

Operating Humidity

5% to 90% RH

3-4

Storage Humidity

5% to 95% RH





Curve and Draw

Performance Curve





Testing Condition:

Input Voltage----Operating voltage (380VAC/50Hz)

Temperature-----Room temperature

Humidity---------65%RH

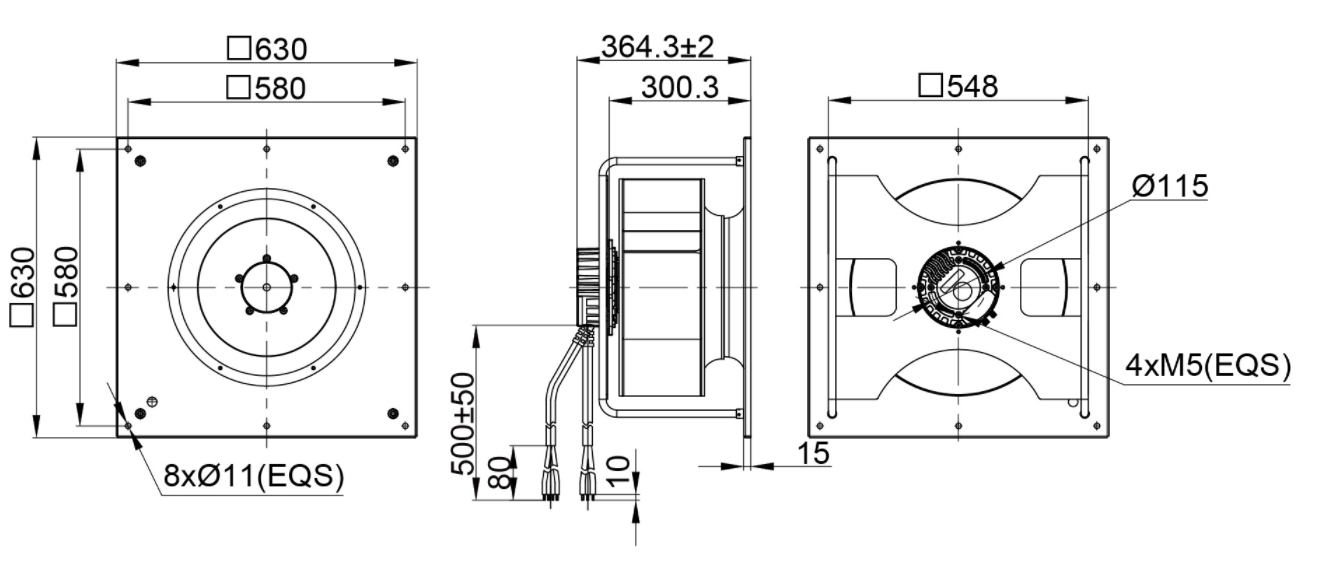

Outline Drawing



Note:

1.Connection line: AC(6×AWG18#),DC(6×AWG24#)

2.AC: Brown=L1(R),Blue=L2(S),Black=L3(T),Green & Yellow=Protecting Earthing,White=NC,Gray=COM;

3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, Blue=GND, White=Tach output, Brown=RSA,Gray=RSB ;
