PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
With a rated frequency of 50 Hz, a rated speed of 1,350 RPM, an input current of 0.34 A, and a power consumption of 47 W, the PC48B2A420C is a 48mm-diameter ac cross flow fan that runs steadily at 230 VAC. It may satisfy a variety of ventilation needs that call for a broad, consistent airflow. Applications for this 48mm crossflow fan in the air curtain business are both common and specialized. It combines low noise with good energy efficiency, operating at a noise level as low as 36 dB(A) thanks to its aluminum alloy impeller and NMB ball bearing system. In order to provide a fast airflow air curtains at factory entrances, restaurant entrances, and shopping center entrances need to run for a long time. This helps to stop the mixing of cold air from inside and outside. The PC48B2A420C air curtain has a protection rating of IP44. This means it can handle dust well. It can operate in temperatures from -20°C to 70°C. So it is okay with humidity and temperature changes at entrances. The PC48B2A420C air curtain gives an airflow of 158.9 CFM. It also has a pressure of 25 Pa. This creates an air curtain. The noise level is as low as 36 dB(A). This is quiet. Does not disturb people. For built-in air curtain installations, this 230V crossflow cooling fan is the perfect OEM core component.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Rated Speed |
1350 RPM |
|
1-4 |
Input Current |
0.34 A |
|
1-5 |
Input Power |
47 W |
|
1-6 |
Acoustical Noise |
36 dBA |
|
1-7 |
Life Expectancy |
30,000 Hours At nominal supply voltage, full speed, room temperature 20 ℃. |
|
1-8 |
Direction of Rotation |
Clockwise seen on rotor |
|
1-9 |
Air Flow |
158.90 CFM / 270 m³/H |
|
1-10 |
Air Pressure |
2.55 mmH₂O / 25 Pa |
Mechanical Characters
|
2-1 |
Dimension |
72mm X 94mm X 936mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminum alloy |
|
2-3 |
Number of Blades |
28 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red, Black, AWG #20 |
Environmental Characters
|
3-1 |
Operating Temperature |
-20℃ to 70℃ |
|
3-2 |
Storage Temperature |
-40℃ to 80℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

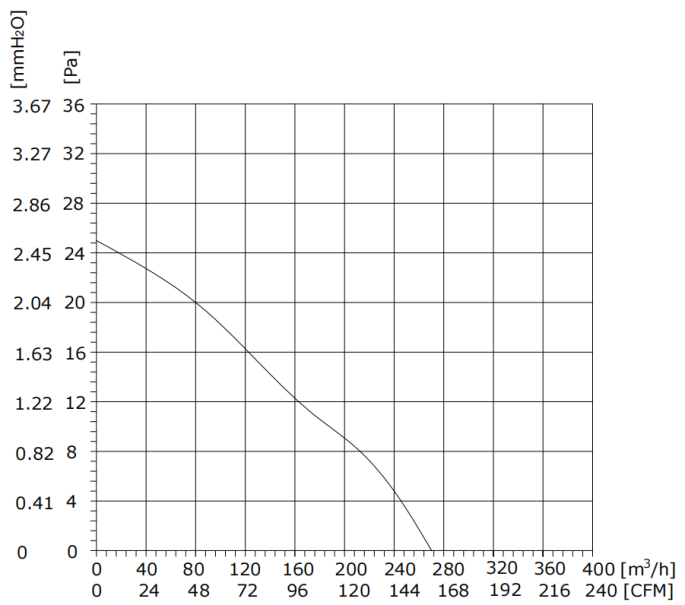

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

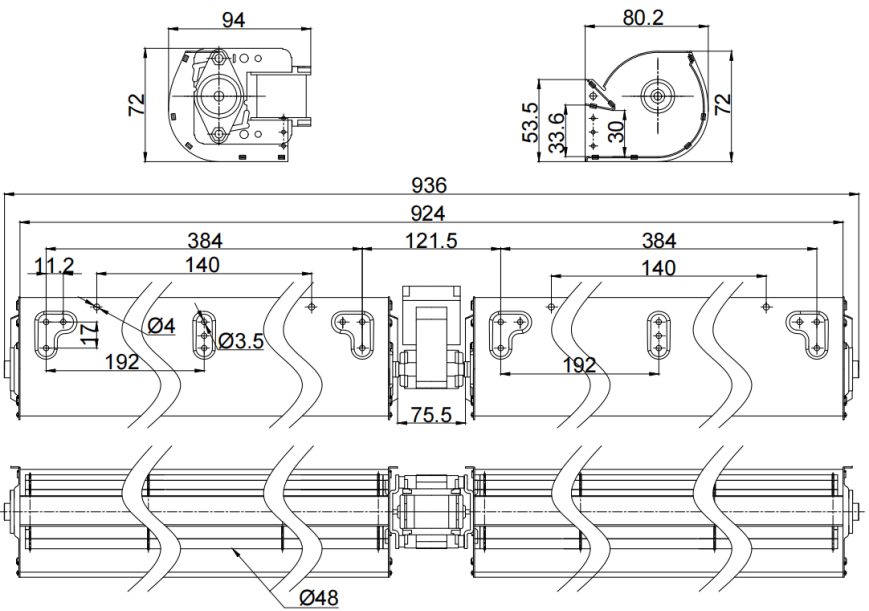

Outline Drawing
Note:
1.Connection line: Red, Black, AWG#20;
2.Red=Live Line, Black=Null line.
