The main uses for our 500mm EC axial fans include photovoltaic equipment, rail travel, and AHU fans. Our axial fans use in-house motors that are highly efficient and consume a lot less energy than conventional versions. Excellent aerodynamic efficiency and little running noise are guaranteed by the blades' aerodynamic impeller design. These fans provide enough static pressure and enough airflow thanks to their five blades, 1,450 RPM rotating speed, and 230V power source. There is a wide range of applications. These things can be used in a lot of places like condensers and cooling towers in the refrigeration sector. They are also used in systems that control the temperature in buildings like the ones you find in warehouses, where they store food and other things. They even use them in the refrigeration rooms at supermarkets. This helps to get rid of the heat. Make sure the temperature stays the same.
Additionally, they are frequently used in solar and rail transportation applications. We have always tried to use EC technology to help the environment. We want to make sure our motors and fans use energy and are really smart. Our main goal is to make the world a cleaner and healthier place for everyone in the future. We want to make sure the refrigeration sector and the HVAC systems use EC technology to protect the environment with energy-efficient motor and fan solutions.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed |
1450 RPM |
|
1-5 |
Input Current |
2.9 A |
|
1-6 |
Input Power |
600 W |
|
1-7 |
Air Flow |
5002.25 CFM / 8500 M³/H |
|
1-8 |
Static Pressure |
1.04 inH2O / 260 Pa |
|
1-9 |
Acoustical Noise |
71 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class F |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP44 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø500 mm X 182 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Cool rolled steel sheet |
|
2-3 |
Number of Blades |
5 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG18#)，DC (AWG22 #) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

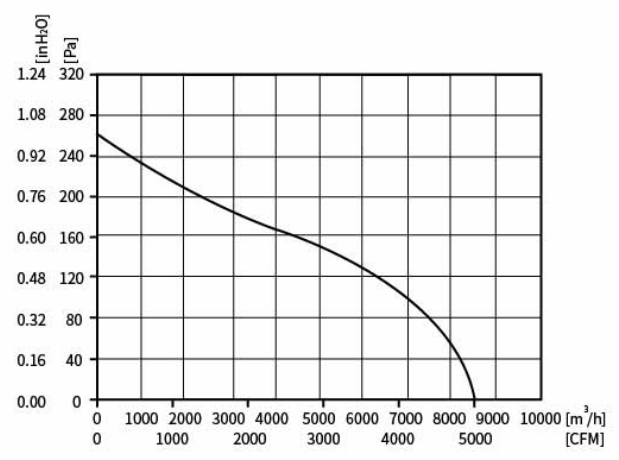

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

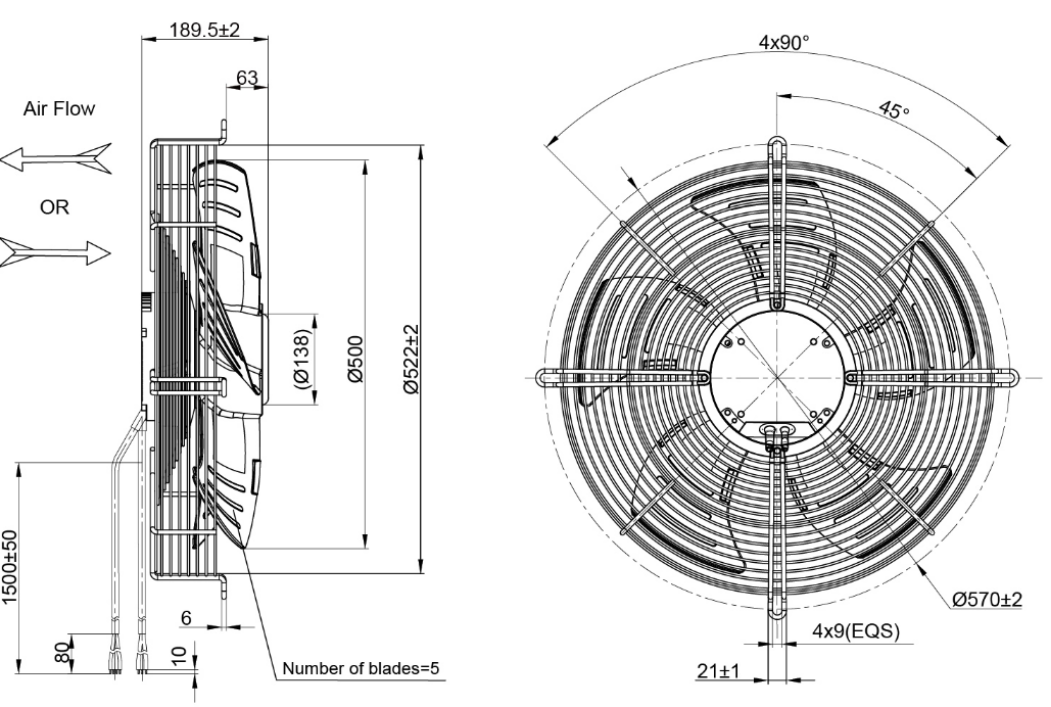

Outline Drawing
Note:
1.Connection line: AC(3×AWG18#)，DC(4×AWG22#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
