The main applications for our 550mm EC axial fan are humidifier cabinets, cold storage, and industrial workshops—all of which need continuous operation. With a speed of 1690 RPM, a power output of 950W, a wind pressure of 270 Pa, and a noise level of 78 dB, it runs on 380V electricity. It has good heat dissipation and exhaust capabilities, as well as plenty of airflow in industrial settings. It functions dependably as an industrial axial fan for both workshop ventilation and cold storage. Exhaust fans and industrial cooling systems work under challenging conditions. Waterproof and moisture-proof ratings can be added to our axial fans. It may be utilized in outdoor cabinets or humid situations as a cooling and weatherproof axial fan without fear of water damage. It has also been put in high-humidity environments, such as humidifier cabinets, and it has functioned flawlessly for long stretches of time.
As a source manufacturer, we provide adaptable customization to perfectly meet your requirements. Depending on the needs of the project, the protection rating, anticipated lifespan, storage temperature, and operational temperature may all be changed. The impeller is made of various materials, such as aluminum alloy, plastic, and galvanized steel, and is integrally molded for resistance to wear and deformation. The whole production process efficiency is much improved, saving more space and electricity, and the size is significantly reduced as compared to conventional models. You can interact directly to tailor a solution and change the fan's specifications to your preferred condition if you have a project with unique fan requirements.
General Characters
|
1-1 |
Rated Voltage |
380 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
304~456 VAC |
|
1-4 |
Rated Speed |
1690 RPM |
|
1-5 |
Input Current |
1.65 A |
|
1-6 |
Input Power |
950 W |
|
1-7 |
Air Flow |
7062.00 CFM / 12000 M³/H |
|
1-8 |
Static Pressure |
1.08 inH2O / 270 Pa |
|
1-9 |
Acoustical Noise |
78 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class F |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP44 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø550 mm X 182 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Cool rolled steel sheet |
|
2-3 |
Number of Blades |
5 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG18#)，DC (AWG22 #) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

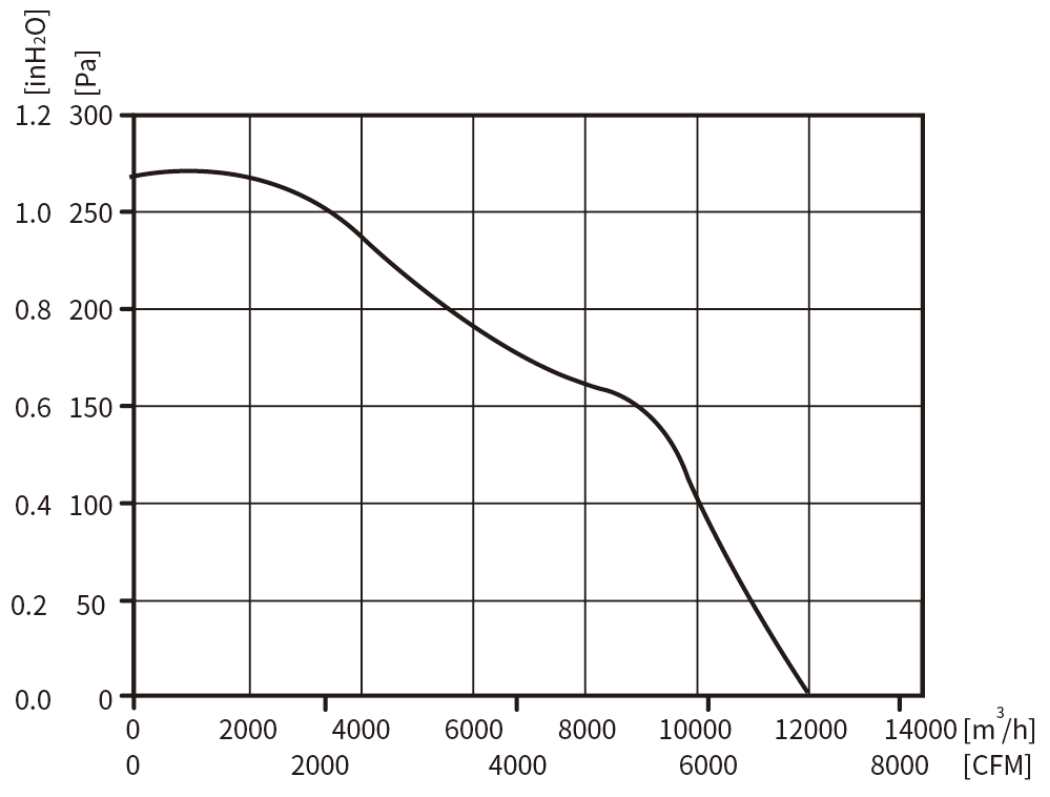

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (380VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

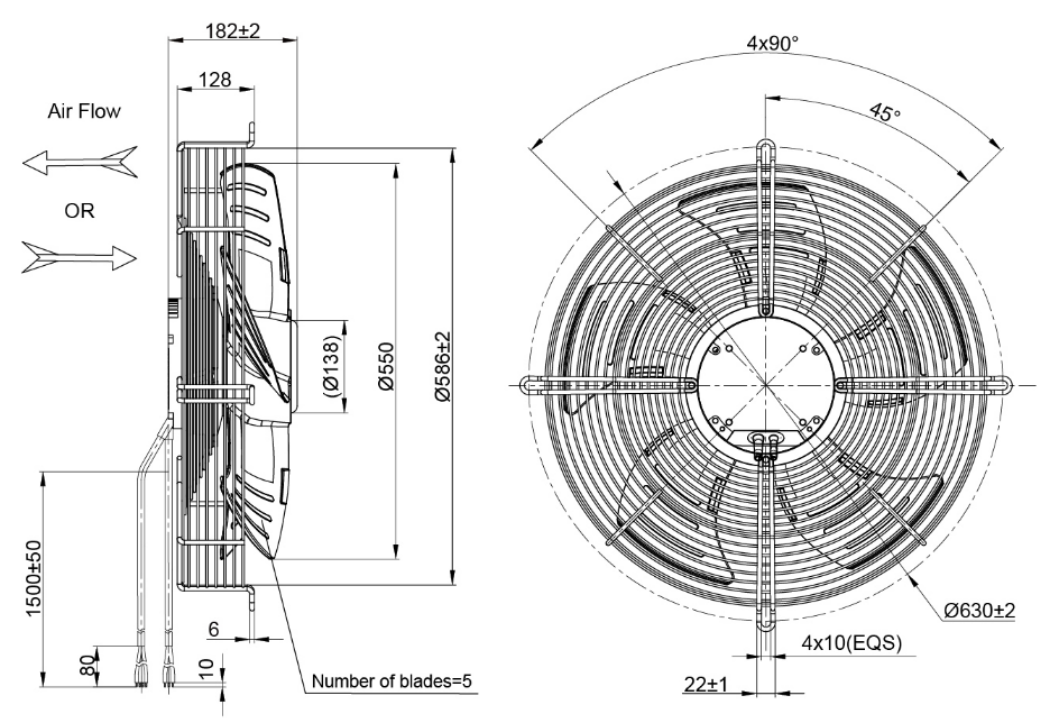

Outline Drawing
Note:
1.Connection line: AC(3×AWG18#)，DC(4×AWG22#)
2.AC: Brown=L1(R)，Blue=L2(S)，Black=L3(T)，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
