The PC60B1A123F 60mm AC Cross Flow fan is a wide-width laminar flow air supply device made especially for household appliances, air curtains, chilled display cases, indoor air conditioners, fireplace heating equipment, and HVAC systems. The cross-flow fan produces a continuous and consistent "air curtain" airflow distribution throughout the whole length of its 123mm impeller, in contrast to conventional axial fans that create airflow at specific places. It is especially appropriate for low to medium back pressure ventilation scenarios needing large-area coverage since the airflow velocity changes very little along the output path. The multi-blade design guarantees consistent airflow distribution throughout the impeller length, while the aluminum alloy impeller combines strength and light weight. Compared to AC axial fan solutions with the same airflow capacity, operating noise is significantly lower at only 40 dB(A), which is comparable to a quiet office setting.
In addition to fan components, we offer complete heat dissipation and heating/ventilation solutions for the whole R&D process. Our technical staff offers complete assistance from requirements analysis and prototype testing to mass production delivery. In order to achieve seamless integration with your control system (e.g., fireplace temperature control board, air conditioning main control board), customized services cover a variety of dimensions. For example, the effective length of the impeller can be adjusted in accordance with the width of the equipment housing; the lead wire specifications meet the assembly requirements of various OEMs; and the speed control curve and 0~10V/PWM control parameters can be optimized according to specific thermal load characteristics.
General Characters
|
1-1 |
Rated Voltage |
115 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Rated Speed |
3000 RPM |
|
1-4 |
Input Current |
0.47 A |
|
1-5 |
Input Power |
30.9 W |
|
1-6 |
Acoustical Noise |
40 dBA |
|
1-7 |
Life Expectancy |
30,000 Hours At nominal supply voltage, full speed room temperature 20℃. |
|
1-8 |
Direction of Rotation |
Clockwise seen on rotor |
|
1-9 |
Air Flow |
82.98 CFM / 141 m³/H |
|
1-10 |
Air Pressure |
4.80 mmH₂O / 47 Pa |
Mechanical Characters
|
2-1 |
Dimension |
90 mm X 98mm X 190 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminum alloy |
|
2-3 |
Number of Blades |
28 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red, Black, AWG #20 |
Environmental Characters
|
3-1 |
Operating Temperature |
-20℃ to 70℃ |
|
3-2 |
Storage Temperature |
-40℃ to 80℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

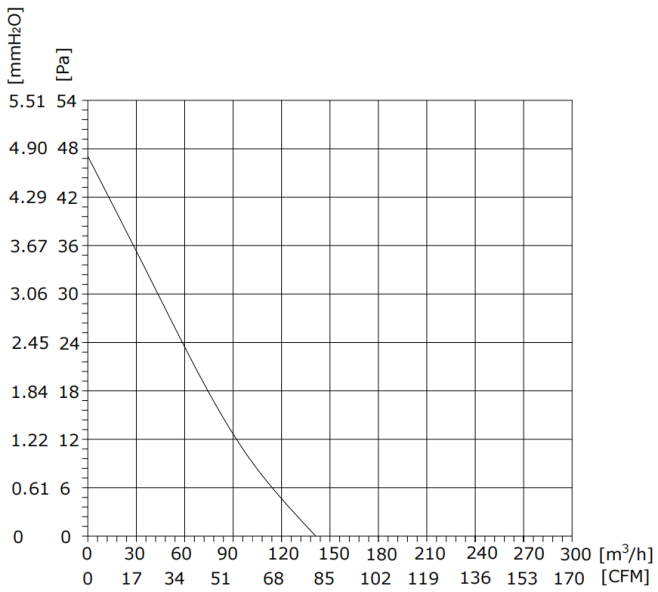

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH
Outline Drawing
Note:
1.Connection line: Red, Black, AWG#20;
2.Red=Live Line, Black=Null line.
