PC60B24610Z 60mm DC cross-flow fan is a DC drive solution specially designed for wide-width laminar air supply scenarios such as air curtains at supermarket/shopping mall entrances. The relatively slender body of the cross-flow air curtain machine allows it to be embedded in the narrow air ducts of wall-mounted air conditioners, floor-standing air curtain machines, large air purifiers, and other equipment, forming a continuous and stable "air curtain" uniform airflow along the entire length of the impeller—the airflow velocity changes very little along the outlet direction, which is especially suitable for medium- and low-pressure ventilation systems that require uniform coverage across large spans. Compared with the AC version, the dc cross flow fan has obvious advantages in operating voltage range, speed regulation response speed, and signal feedback, providing system integrators with higher design flexibility and intelligent interfaces.
PBM has focused on DC/EC motor and fan technology for more than 15 years. We provide full-process engineering services from requirements analysis to batch delivery. Support customized solutions. Whether you are developing supermarket air curtains, home/commercial air purifiers, built-in electric ovens, or air conditioning indoor units and vehicle ventilation systems, PBM's technical sales team will provide you with full engineering support from prototype verification to mass production, integrating the reliability of standard products with the adaptability of customized products.
General Characters
|
1-1 |
Rated Voltage |
24 VDC |
|
1-2 |
Operating Voltage |
16~28 VDC |
|
1-3 |
Rated Speed |
2400 RPM |
|
1-4 |
Input Current |
0.6 A |
|
1-5 |
Input Power |
14.4 W |
|
1-6 |
Air Flow |
223.63 CFM / 380 m³/H |
|
1-7 |
Static Pressure |
2.45 mmH₂O / 24 Pa |
|
1-8 |
Acoustical Noise |
44 dB(A) |
|
1-9 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-10 |
Insulation Class |
Class B |
|
1-11 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-12 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-13 |
Protection Type |
IP44 |
|
1-14 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |

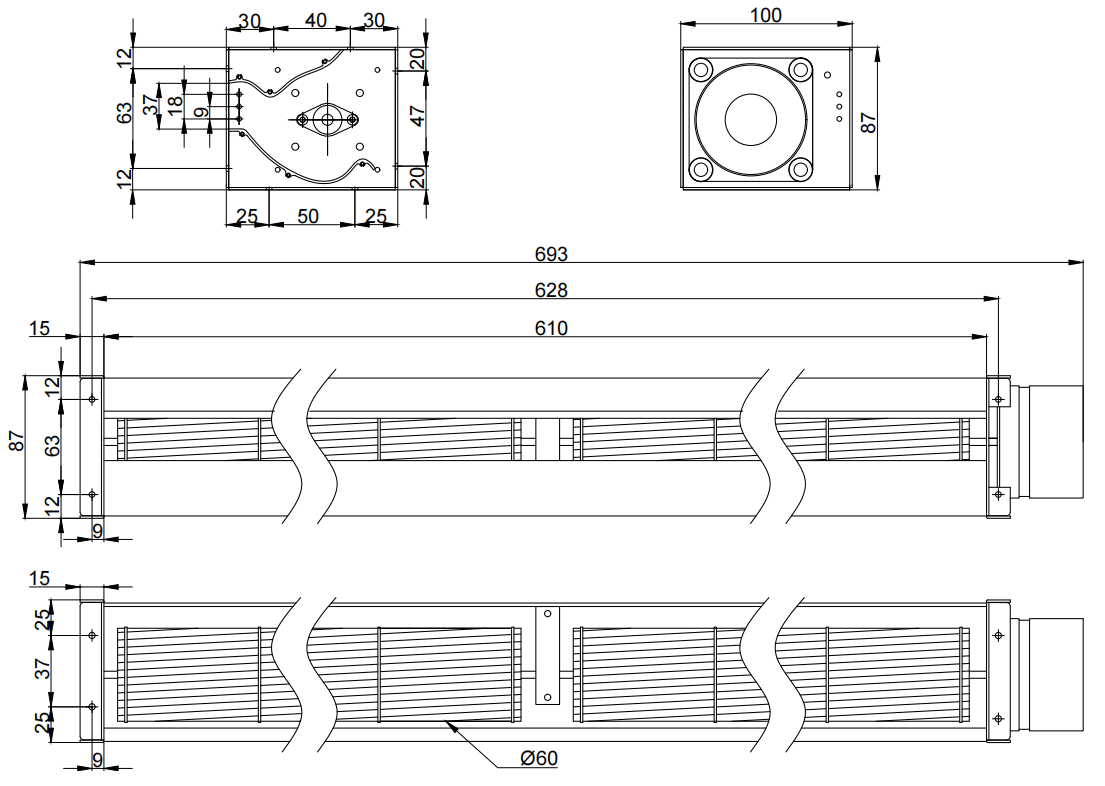

87 mm X 100mm X 693mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminum alloy |
|
2-3 |
Number of Blades |
22 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red, Black, White AWG22# |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

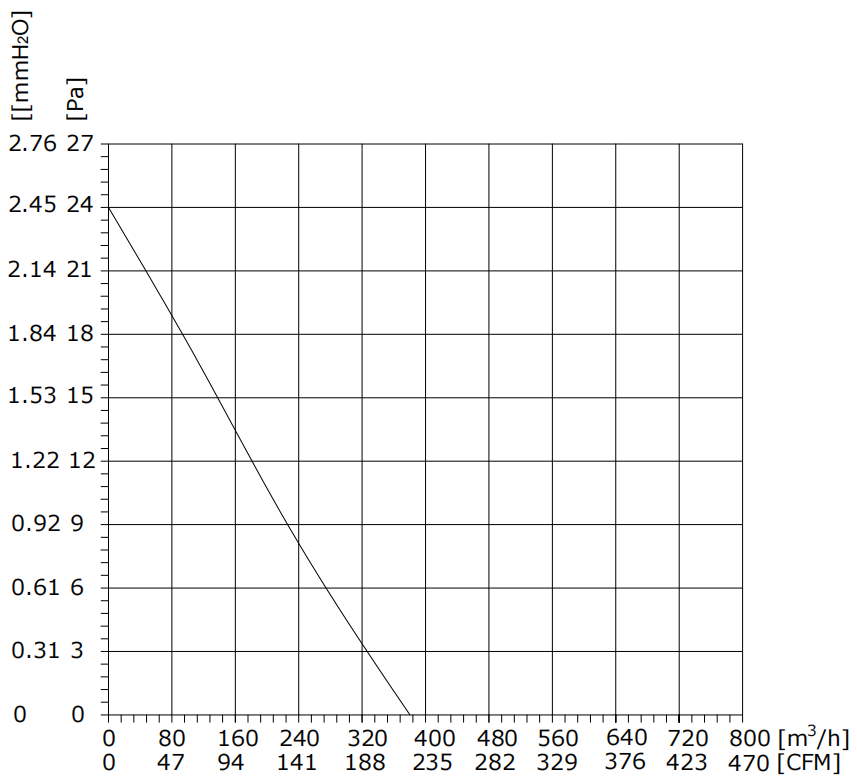

Performance Curve
Input Voltage----Operating voltage (24 VDC)
Temperature-----Room temperature
Humidity---------65%RH
Test distance-----1m
Note:
1. Connection line 3X (Red, Black, White AWG22#);
Red=+24VDC, White=0-10VDC, Blue=GND.
