PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.
A wide-width laminar flow air supply device made especially for heat recovery ventilation systems (HRV/ERV) is the PC65B2A242A 65mm AC cross flow fan. The cross-flow fan and complete heat exchanger core in heat recovery fresh air units create a steady cross-flow heat transfer layer between the supply and exhaust air channels. This fan makes use of the high-temperature resistance and continuous operating features of AC motors in the hot air circulation systems of commercial warm air blowers and industrial continuous drying ovens. When compared to conventional solutions, PBM's AC/EC fan technology may lower power usage by around 20% to 30% under the same airflow needs.
We provide a whole thermal solution, from requirements research and prototype testing to mass production delivery, rather than simply a fan. Impeller length, operating voltage, lead length and terminal type, speed control curve modification, and FG speed feedback signal design are only a few of the aspects covered by OEM/ODM customized services.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Rated Speed |
1500 RPM |
|
1-4 |
Input Current |
0.28 A |
|
1-5 |
Input Power |
38 W |
|
1-6 |
Acoustical Noise |
45 dBA |
|
1-7 |
Life Expectance |
30,000 Hours At nominal supply voltage, full speed room temperature 20℃. |
|
1-8 |
Direction of Rotation |
Clockwise seen on rotor |
|
1-9 |
Air Flow |
154.19 CFM / 262 m³/H |
|
1-10 |
Air Pressure |
3.06 mmH2O / 30 Pa |
Mechanical Characters
|
2-1 |
Dimension |
89.5mm X 108.5mm X 313mm(see dimension drawing) |
|
2-2 |
Material of Impeller |
Aluminum alloy |
|
2-3 |
Number of Blades |
28 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red, Black, AWG#20 |
Environmental Characters
|
3-1 |
Operating Temperature |
-20℃ to 70℃ |
|
3-2 |
Storage Temperature |
-40℃ to 80℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

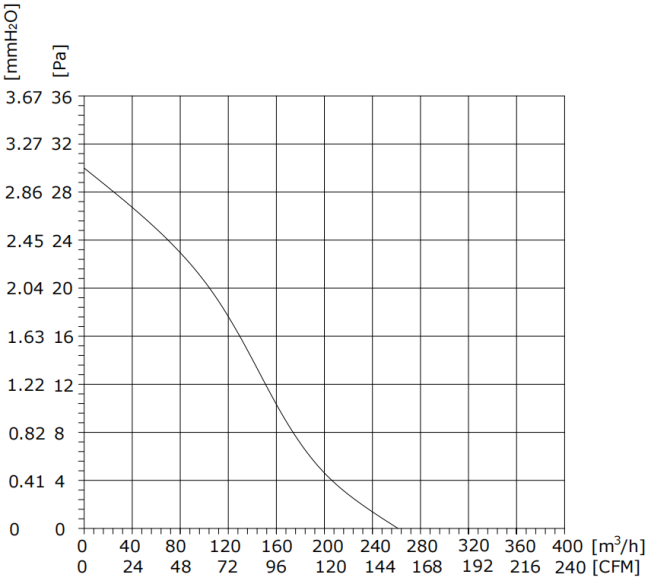

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

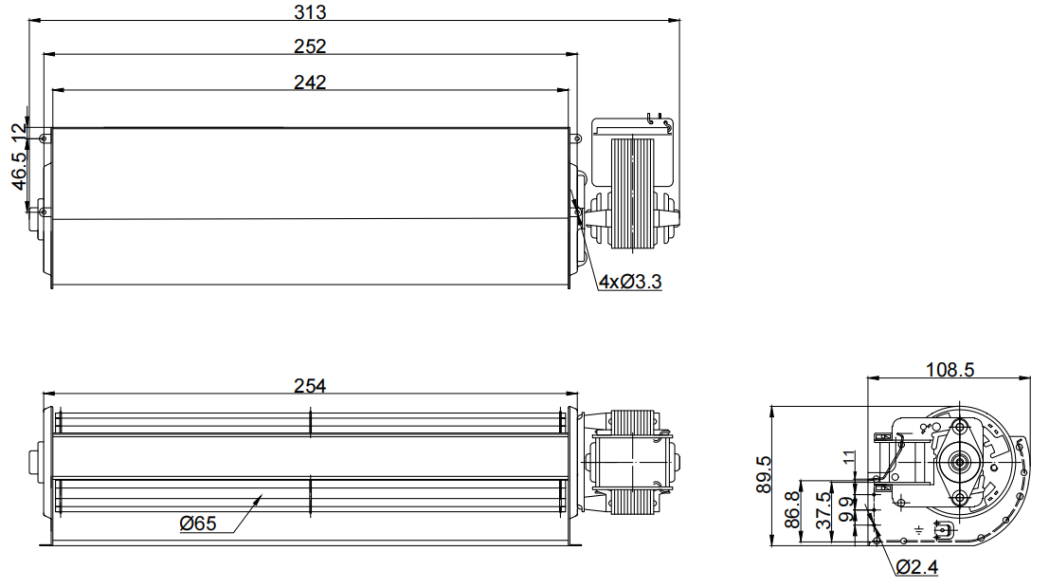

Outline Drawing
Note:
1.Connection line: Red, Black, AWG#20;
2.Red=Live Line, Black=Null line.
