PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

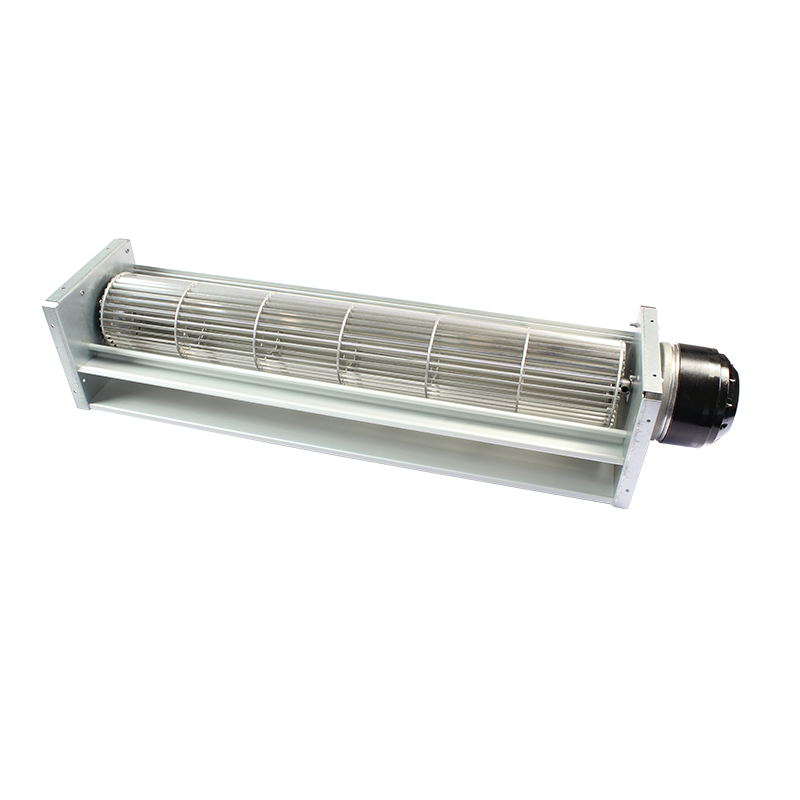

The PC80B2A250B AC cross flow fan is a high‑performance AC‑driven solution designed for wide‑width, high‑static‑pressure laminar airflow applications, including:
*Industrial factory and commercial entrance air curtains – forming a high‑pressure air curtain to block outdoor hot/cold air intrusion,
*Large HVAC terminal systems,
*Refrigerated display cabinets and air curtain cabinets in cold chain logistics centers,
*Heating equipment such as fan heaters and large electric fireplaces,
*Industrial constant temperature and drying equipment.

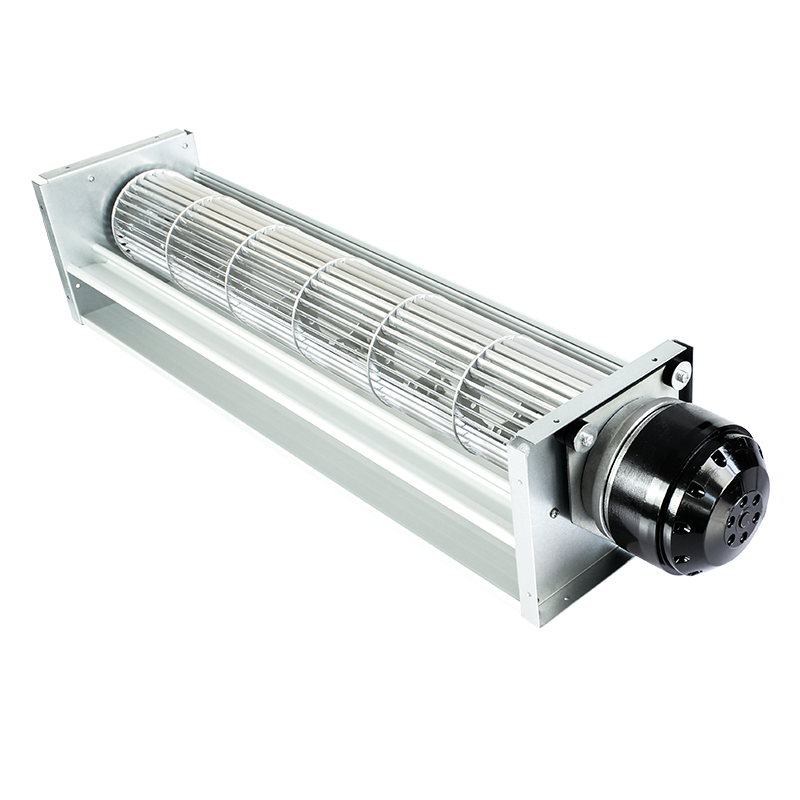

This high static pressure cross flow fan for industrial HVAC and air curtain applications features a die‑cast aluminum alloy fan frame and a vibration‑damping rubber pad system. These design elements ensure structural stability and low vibration output under continuous high‑static‑pressure operation, significantly reducing the risk of loosening over long‑term equipment runtime.
As a solution provider with over 15 years of expertise in EC/AC motor and fan technology, PBM offers OEM custom cross flow fan services according to your assembly requirements. PBM is not just a fan manufacturer – we are your industrial HVAC and ventilation system solution partner.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Rated Speed |
2300 RPM |
|
1-4 |
Input Current |
0.3 A |
|
1-5 |
Input Power |
65 W |
|
1-6 |
Acoustical Noise |
58 dBA |
|
1-7 |
Life Expectancy |
30,000 Hours At nominal supply voltage, full speed room temperature 20℃. |
|
1-8 |
Direction of Rotation |
Clockwise seen on rotor |
|
1-9 |
Airflow |
486 m³/H |
|
1-10 |
Air Pressure |
88 Pa |
Mechanical Characters
|
2-1 |
Dimension |
see dimension drawing |
|
2-2 |
Material of Impeller |
Aluminum alloy |
|
2-3 |
Number of Blades |
28 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red, Black, AWG #20 |
Environmental Characters
|
3-1 |
Operating Temperature |
-20℃ to 70℃ |
|
3-2 |
Storage Temperature |
-40℃ to 80℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

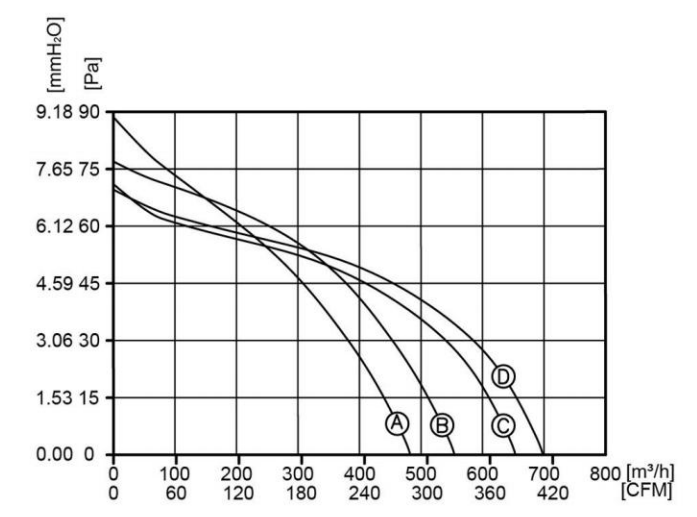

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

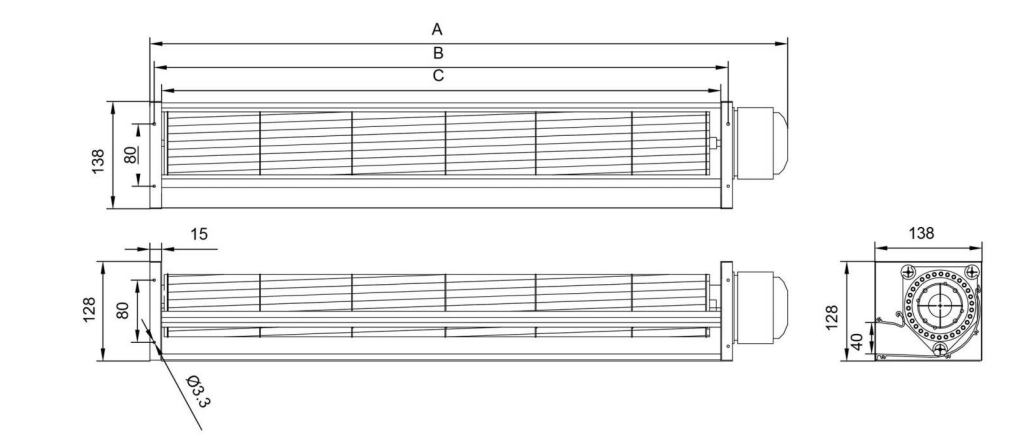

Outline Drawing
Note:
1.Connection line: Red, Black, AWG#20;
2.Red=Live Line, Black=Null line.
