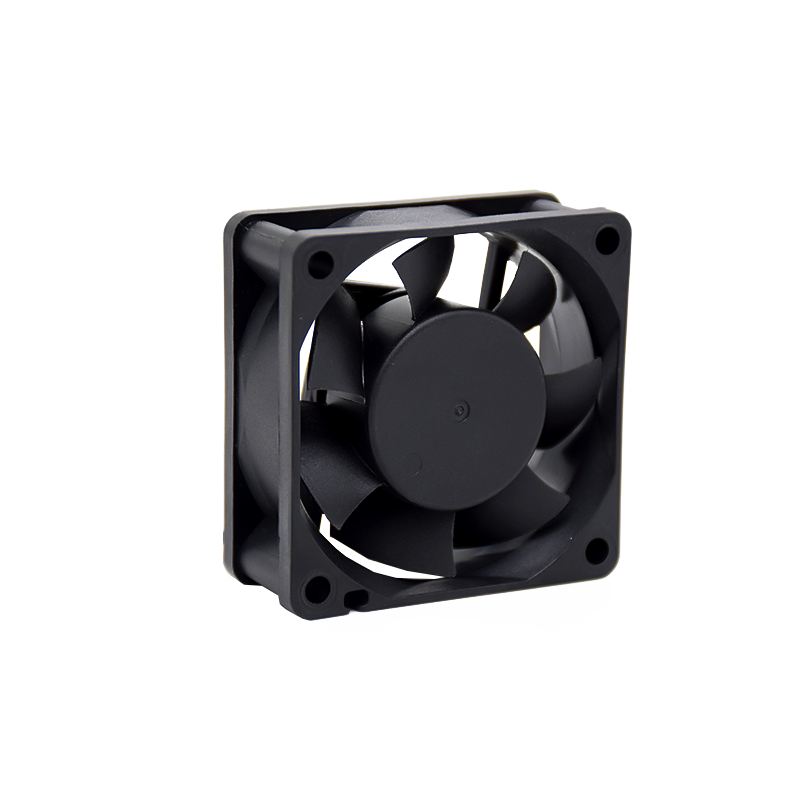

Φ80x80x38mm EC-AC Axial Fan PA8038B2HL

Name: Φ80x80x38mm EC-AC Axial Fan PA8038B2HL
Brand: PBM
Price: 45.00 USD
Availability: InStock

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Technical Description

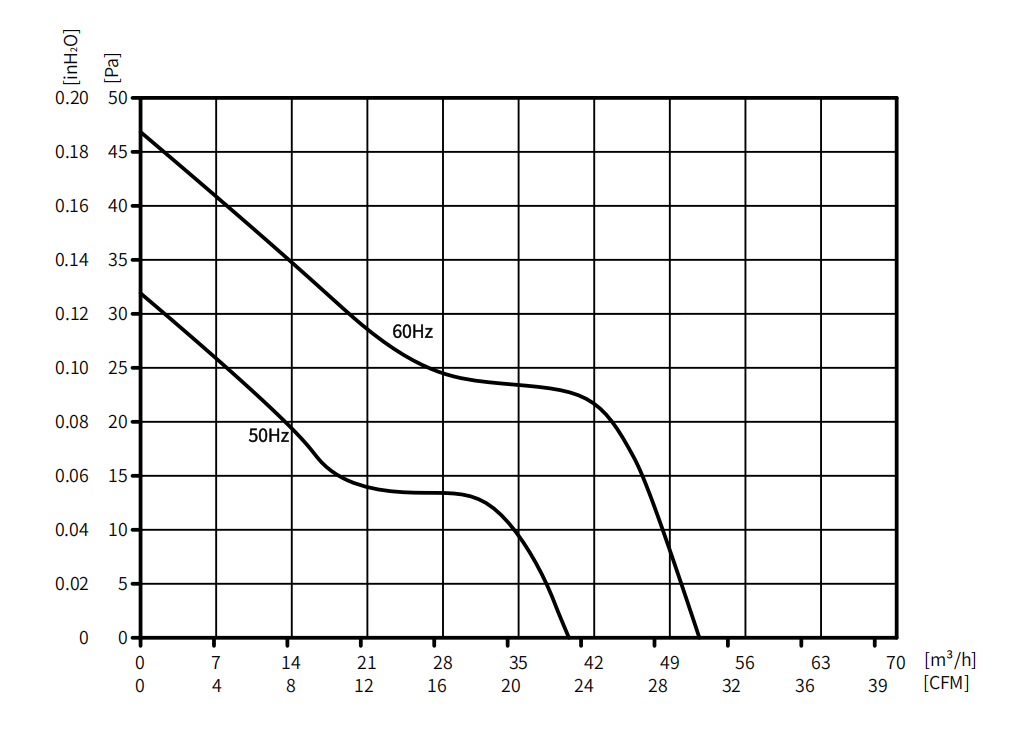

Curve and Draw

Certificate

Application Scopes

Packing Details

The PA8038B2HL Φ80x80x38mm AC axial fan is a high‑efficiency, compact axial fan for telecom cabinet cooling, designed specifically for telecommunications and communication equipment. Its typical applications include base station cabinets, data center server rack cooling, power module cooling devices, and communication power rectifier cabinets.

Leveraging a high‑performance NMB ball bearing system, this long life axial fan for industrial automation achieves an operating life of 50,000 hours (L10 life) at 40°C ambient temperature. This significantly reduces maintenance and replacement frequency throughout the equipment’s lifecycle, making it an ideal high reliability axial fan for base station and other 24/7 continuous operation environments such as telecom base stations and industrial automation equipment.

Beyond standard products, PBM offers customized cooling solutions throughout the entire R&D process. Our custom axial fan for power converter cabinet, corrosion resistant axial fan options, and thermal management optimization for various enclosures ensure that your specific requirements are fully addressed. Customized services cover multiple dimensions — from airflow tuning to material selection. The PBM technical team is dedicated to serving you.

General Characters

1-1	Rated Voltage	220 VAC
1-2	Frequency	50/60 Hz
1-3	Operating Voltage	184~253 VAC
1-4	Rated Speed	2300/2800 RPM
1-5	Input Current	0.11/0.10 A
1-6	Input Power	18/16 W
1-7	Air Flow	42.77 / 52.66 M³/H
1-8	Static Pressure	32.34/47.4 Pa
1-9	Acoustical Noise	31/35 dB(A)
1-10	Life Expectancy	50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH.
1-11	Insulation Class	Class B
1-13	Motor Protection	Locked rotor protection Polarity protection Automatic restart capability
1-14	Speed Control	Control input 0~10VDC / PWM
1-15	Protection Type	IP44
1-17	Signal Output	FG (Frequency Generator)

Mechanical Characters

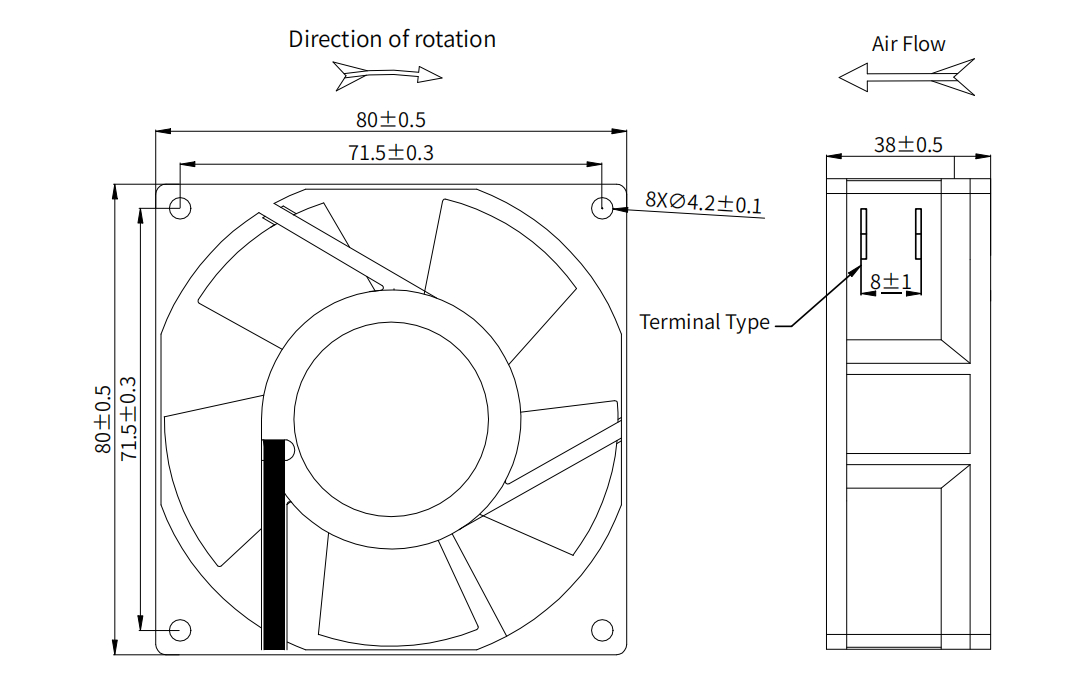

2-1	Dimension	Φ80x80x38mm(see dimension drawing)
2-2	Material of Impeller	Plastic
2-3	Number of Blades	5
2-4	Bearing System	NMB ball bearing
2-5	Lead Wire	AC (AWG20#), DC (AWG22 #)
