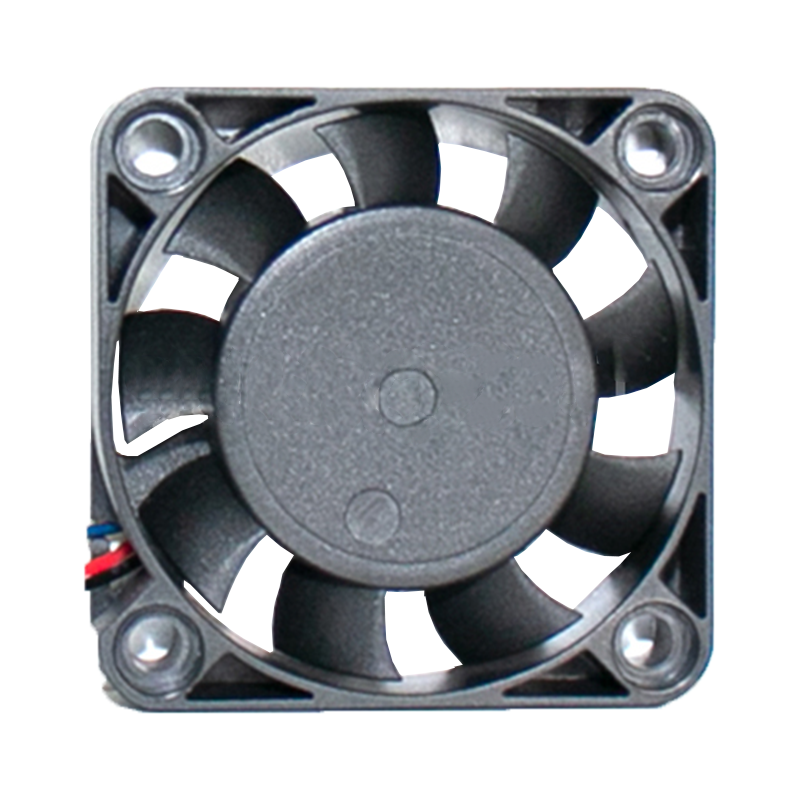

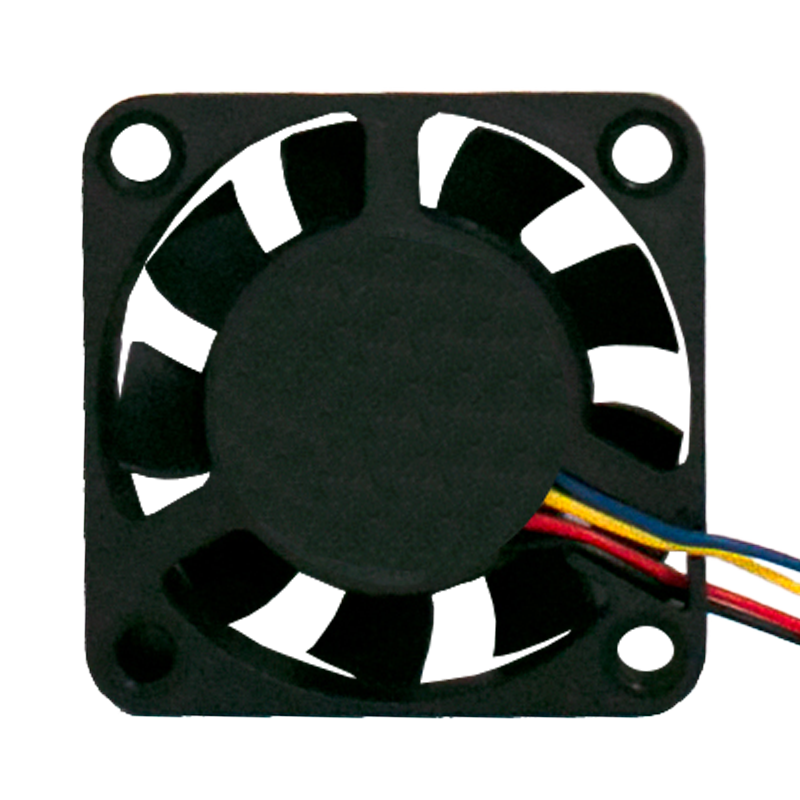

Φ30x30x10mm EC-DC Axial Fan PA3010B12M

Name: Φ30x30x10mm EC-DC Axial Fan PA3010B12M
Brand: PBM
Price: 45.00 USD
Availability: InStock

PBM FOCUS ON EC FAN ONLY. Certificate: CE,UL,ROHS; Supply Ability: 100,000 pcs per year; MOQ: 1~100 pcs based on EXW price; 100 pcs above based on FOB price.

Technical Description

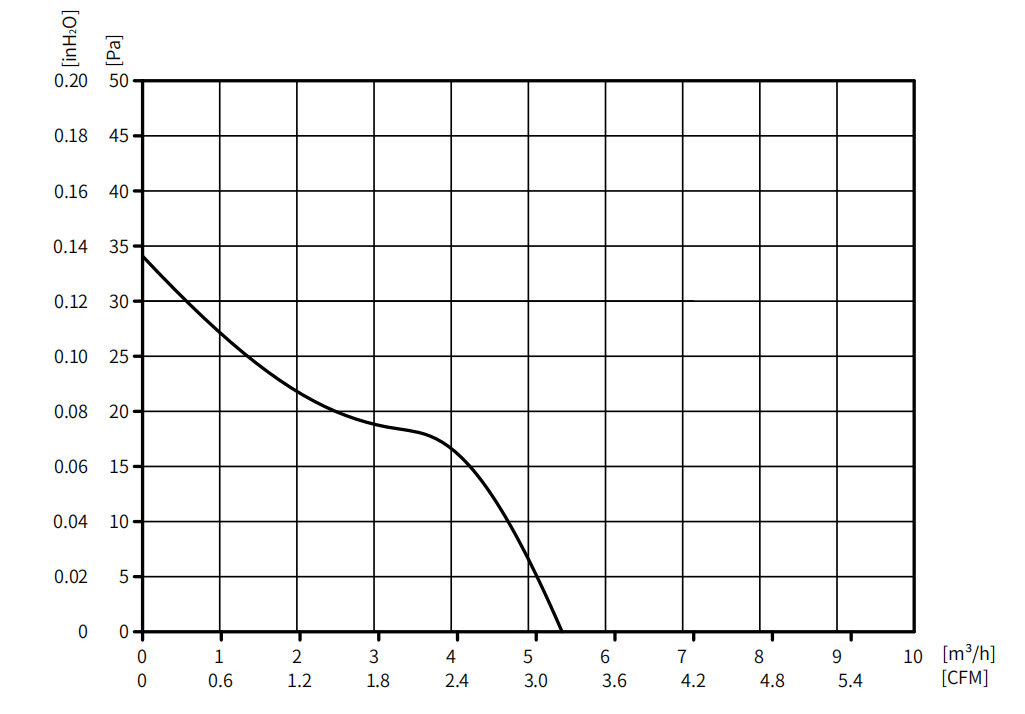

Curve and Draw

Certificate

Application Scopes

Packing Details

The PA3010B12M 30x30x10mm DC axial fan is a compact axial fan for 3D printer control module cooling, designed specifically for space‑constrained applications such as miniature industrial equipment heat dissipation, 3D printer electronics cooling, home and commercial appliance PCB temperature control, automotive electronic device cooling, and security surveillance system thermal management. It offers a reliable DC cooling solution where installation space is extremely limited.

Powered by a high‑efficiency brushless DC motor technology, this fan achieves significantly longer operational life and lower electromagnetic interference compared to traditional brushed motor solutions. It serves as an ideal long life axial fan for 24/7 industrial automation and low noise axial fan for office equipment.

With a noise level as low as 29.9 dB(A), the PA3010B12M delivers silent axial fan for home appliance cooling and reliable thermal management in office devices where acoustic performance and user experience are critical. It is also well suited for 12v dc axial cooling fan for automotive electronics and axial fan for security surveillance system.

PBM is not only a standard product manufacturer, but also your customized micro cooling solution provider. We offer custom axial fan services covering multiple dimensions – from airflow optimization to connector types and operating voltage adjustments. Our team is ready to support your unique thermal challenges.

General Characters

1-1	Rated Voltage	12 VDC
1-2	Frequency	50/60 Hz
1-3	Operating Voltage	6~13.2 VDC
1-4	Rated Speed	8000 RPM
1-5	Input Current	0.10 A
1-6	Input Power	1.2 W
1-7	Air Flow	5.4 M³/H
1-8	Static Pressure	34 Pa
1-9	Acoustical Noise	23 dB(A)
1-10	Life Expectancy	50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH.
1-11	Insulation Class	Class B
1-13	Motor Protection	Locked rotor protection Polarity protection Automatic restart capability
1-14	Speed Control	Control input 0~10VDC / PWM
1-15	Protection Type	IP44
1-17	Signal Output	FG (Frequency Generator)

Mechanical Characters

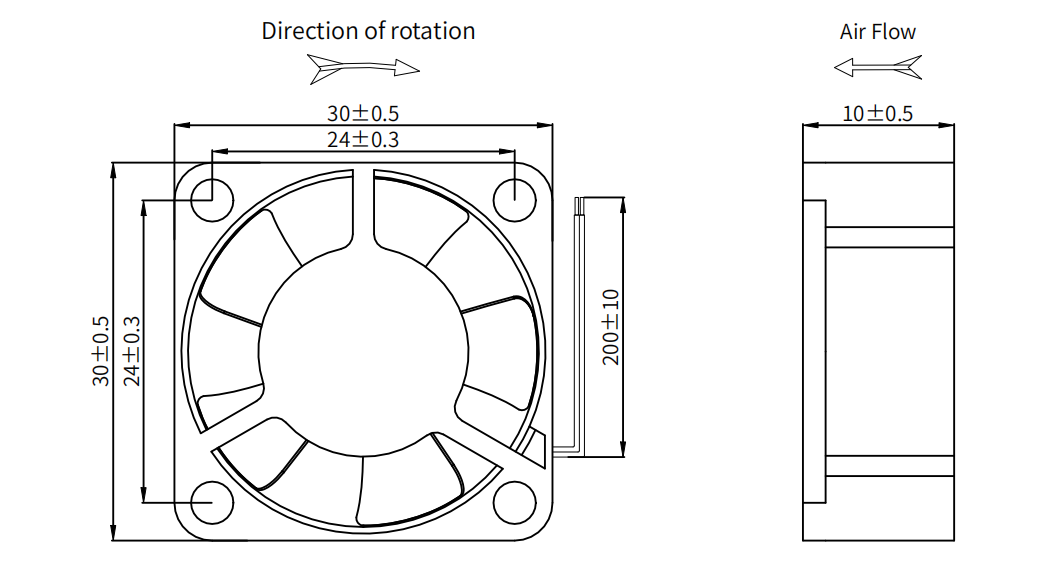

2-1	Dimension	Φ30x30x10 mm (see dimension drawing)
2-2	Material of Impeller	Thermal Plastic
2-3	Number of Blades	5
2-4	Bearing System	Ball bearing
2-5	Lead Wire	Red(+)，Black(-):UL1007#28AWG(200±10mm)
