Waterproof IP55 Fan

IP55 Forward Curved Centrifugal Fan

View More> Related Accessories>

200x140mm Waterproof IP55 EC-AC Forward Curved Centrifugal Fan

200mm IP55 EC-AC Forward Curved Centrifugal Fan

Please feel free to contact us Inquire

160mm Waterproof IP55 EC-AC Forward Curved Centrifugal Fan

160mm IP55 EC-AC Forward Curved Centrifugal Fan

Please feel free to contact us Inquire

140mm EC-DC Waterproof IP55 Forward Curved Centrifugal Fan

140mm EC-DC IP55 Forward Curved Centrifugal Fan

Please feel free to contact us Inquire

108mm Waterproof IP55 EC-AC Forward Curved Centrifugal Fan

108mm IP55 EC-AC Forward Curved Centrifugal Fan

Please feel free to contact us Inquire

Centrifugal Fans, Forward Curved, Technical Features Overview

DC Centrifugal Fan Forward Curved D(120-180)-IP55

EC Centrifugal Fan Forward Curved D(108-200)-IP55

Application

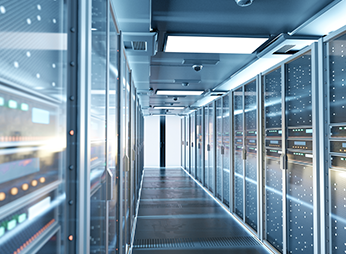

Cloud Date Center

Efficient cooling for cloud data centers. High static pressure, low energy, smart speed control, ensuring server stability and lowering PUE.

IT and Electronic Industry

Precision cooling for IT and electronics. High static pressure, low vibration, clean airflow for servers, storage, and cleanroom operations.

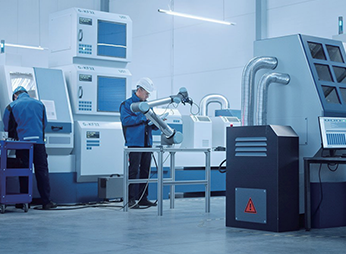

Mechanical Equipment

Efficient cooling for mechanical arms. Compact size, low noise, high static pressure for servo drives and control systems in long-term operation.

Parameter summary table

Please click on the model in the corresponding table to go to the product details page.

DOWNLOAD

Model	Rated Voltage	Rated Power	Rated Speed	Air Flow	Air Pressure	EC/DC/AC	Inquire
PF3N108B2E-RZ0	230 VAC	38 W	3400 RPM	330 M³/H	300 Pa	EC	Inquire
PF3N120B2E-RZ0	230 VAC	85 W	3450 RPM	350 M³/H	400 Pa	EC	Inquire
PF3N120B24-RZ0	24 VDC	67.2 W	2400 RPM	350 M³/H	640 Pa	DC	Inquire
PF3N120B48-RZ0	48 VDC	67.2 W	2400 RPM	350 M³/H	640 Pa	DC	Inquire
PF3N133B2E-RZ0	230 VAC	85 W	3200 RPM	430 M³/H	280 Pa	EC	Inquire
PF3N140B2E-RP0	230 VAC	85 W	1900 RPM	450 M³/H	760 Pa	EC	Inquire
PF3N140B2E-RZ0	230 VAC	85 W	1900 RPM	450 M³/H	760 Pa	EC	Inquire
PF3N140B2E-SZ0	230 VAC	115 W	2000 RPM	640 M³/H	920 Pa	EC	Inquire
PF3N140B24-RP0	24 VDC	52.8 W	1600 RPM	500 M³/H	850 Pa	DC	Inquire
PF3N140B24-RZ0	24 VDC	57.6 W	1600 RPM	450 M³/H	760 Pa	DC	Inquire
PF3N140B48-RP0	48 VDC	52.8 W	1600 RPM	500 M³/H	850 Pa	DC	Inquire
PF3N140B48-RZ0	48 VDC	57.6 W	1600 RPM	450 M³/H	760 Pa	DC	Inquire
PF3N146B2E-TZ0	230 VAC	170 W	2600 RPM	630 M³/H	800 Pa	EC	Inquire
PF3N160B2E-MP0	230 VAC	220 W	2300 RPM	770 M³/H	900 Pa	EC	Inquire
PF3N160B2E-MZ0	230 VAC	220 W	2300 RPM	800 M³/H	820 Pa	EC	Inquire
PF3N160B2E-TP0	230 VAC	170 W	2000 RPM	660 M³/H	950 Pa	EC	Inquire
PF3N160B2E-TZ0	230 VAC	155 W	1900 RPM	640 M³/H	910 Pa	EC	Inquire
PF3N160B24-TP0	24 VDC	163.2 W	2000 RPM	620 M³/H	940 Pa	DC	Inquire
PF3N160B24-TZ0	24 VDC	163.2 W	2000 RPM	600 M³/H	900 Pa	DC	Inquire
PF3N160B48-TP0	48 VDC	163.2 W	2000 RPM	620 M³/H	940 Pa	DC	Inquire
PF3N160B48-TZ0	48 VDC	163.2 W	2000 RPM	600 M³/H	900 Pa	DC	Inquire
PF3N180B2E-MZ0	230 VAC	220 W	1800 RPM	900 M³/H	800 Pa	EC	Inquire
PF3N180B2E-TZ0	230 VAC	170 W	1550 RPM	750 M³/H	900 Pa	EC	Inquire
PF3N180B24-TZ0	24 VDC	124.8 W	1350 RPM	740 M³/H	900 Pa	DC	Inquire
PF3N180B48-TZ0	48 VDC	124.8 W	1350 RPM	740 M³/H	900 Pa	DC	Inquire
PF3N200B2E-MZ0	230 VAC	220 W	2200 RPM	850 M³/H	600 Pa	EC	Inquire

FAQ

How do I choose the right IP55 forward curved centrifugal fan?
+
When selecting an IP55 forward curved centrifugal fan, buyers should evaluate:
- Required airflow (CFM or m³/h)
- Static pressure requirements
- Installation space
- Voltage and frequency
- Operating temperature
- Noise level requirements
- Motor type (AC or EC motor)
- Environmental conditions
Reviewing the fan performance curve is important to ensure proper system matching.
What are the advantages of an IP55 forward curved centrifugal fan?
+
IP55 forward curved centrifugal fans offer several benefits, including:
- High airflow volume
- Compact design
- Low operating noise
- Stable airflow performance
- Dust and moisture resistance
- Easy integration into HVAC systems
Can IP55 forward curved centrifugal fans be customized?
+
Yes. Many manufacturers offer customized solutions for OEM and industrial projects. Customization options may include:
- Airflow and pressure specifications
- Fan dimensions
- AC or EC motor configuration
- Speed control functions
- Mounting structure
- Corrosion-resistant materials
- Voltage and frequency customization
- Noise reduction optimization
Customized fans are commonly used in HVAC equipment and specialized ventilation systems.
Where are IP55 forward curved centrifugal fans commonly used?
+
These fans are widely used in applications such as:
- HVAC systems
- Fan coil units (FCU)
- Air handling units (AHU)
- Commercial ventilation equipment
- Indoor air circulation systems
- Air purification systems
- Cooling equipment
- Industrial ventilation systems
Their compact structure and stable airflow make them suitable for a wide range of commercial and industrial applications.
What is the difference between forward curved and backward curved centrifugal fans?
+
Forward curved centrifugal fans are designed for high airflow at relatively low static pressure, while backward curved centrifugal fans are generally more energy efficient and suitable for higher-pressure applications. Forward curved fans are often preferred for:
- Compact HVAC equipment
- Air handling units
- Commercial ventilation systems
- Applications requiring quieter airflow
Backward curved fans are more commonly used in industrial systems requiring higher efficiency and pressure capability.
