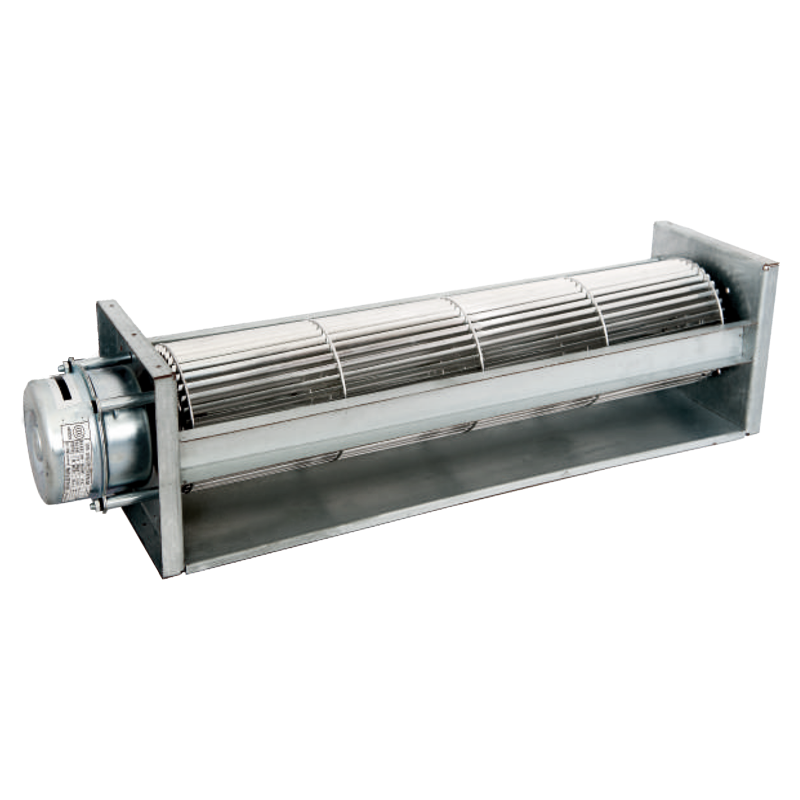

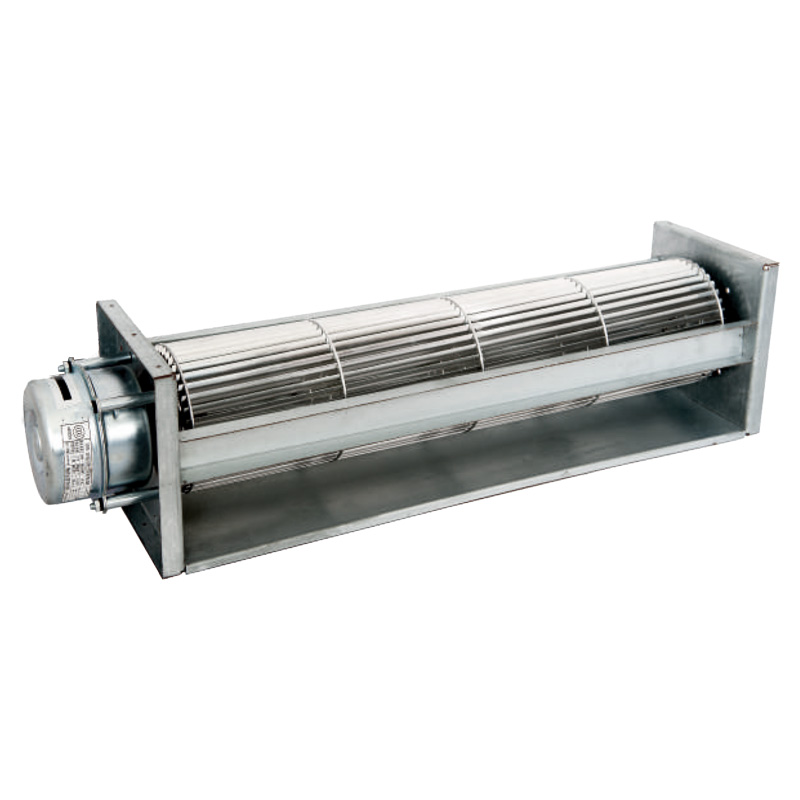

The PC100B2A765L AC cross flow fan is a high‑performance AC‑driven solution designed for large‑span laminar airflow applications, including industrial and commercial ventilation systems such as factory workshops, large warehouses, supermarkets, and office spaces requiring efficient air circulation and exchange, as well as home appliances and consumer electronics like large‑capacity air purifiers, energy recovery ventilators (ERVs), and built‑in ovens that demand wide, uniform airflow distribution. This cross flow fan for industrial warehouse air circulation and commercial ventilation delivers consistent, broad‑coverage airflow to meet the most demanding requirements.
PBM's intelligent low‑power air circulation fan is widely deployed across industrial, commercial, and residential ventilation, various home appliances, HVAC systems, the automotive industry, telecommunications, and the healthcare sector, providing high‑quality service to global customers. We support customized cross flow fan services – including length adjustments, motor types, and mounting configurations – to perfectly match your application needs. Whether you need a quiet cross flow fan for office ventilation or a durable AC fan for telecom equipment cooling, PBM delivers tailored solutions.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Rated Speed |
1050 RPM |
|
1-4 |
Input Current |
0.40 A |
|
1-5 |
Input Power |
60 W |
|
1-6 |
Acoustical Noise |
63 dBA |
|
1-7 |
Life Expectancy |
30,000 Hours At nominal supply voltage, full speed room temperature 20℃. |
|
1-8 |
Direction of Rotation |
Clockwise seen on rotor |
|
1-9 |
Airflow |
1150 m³/H |
|
1-10 |
Air Pressure |
74 Pa |
Mechanical Characters
|
2-1 |
Dimension |
see dimension drawing |
|
2-2 |
Material of Impeller |
Aluminum alloy |
|
2-3 |
Number of Blades |
28 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red, Black, AWG #20 |
Environmental Characters
|
3-1 |
Operating Temperature |
-20℃ to 70℃ |
|
3-2 |
Storage Temperature |
-40℃ to 80℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

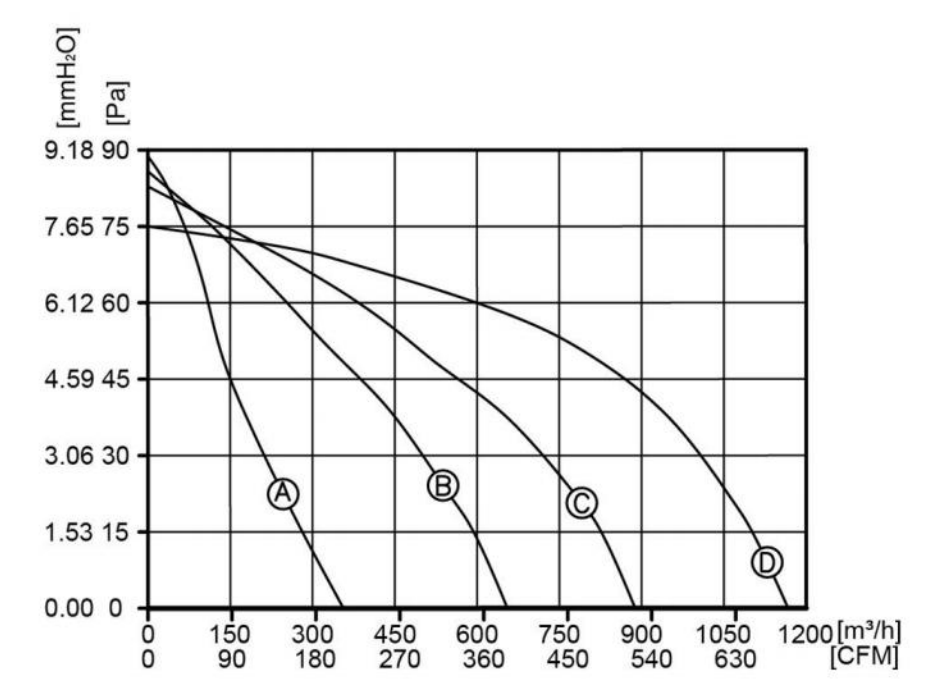

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

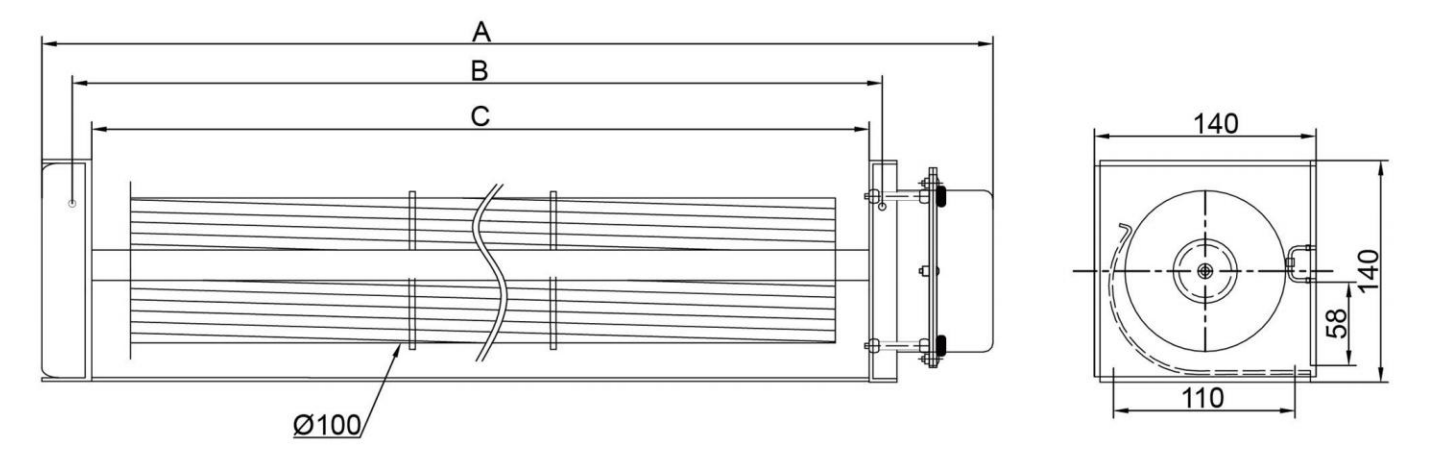

Outline Drawing
Note:
1.Connection line: Red, Black, AWG#20;
2.Red=Live Line, Black=Null line.
