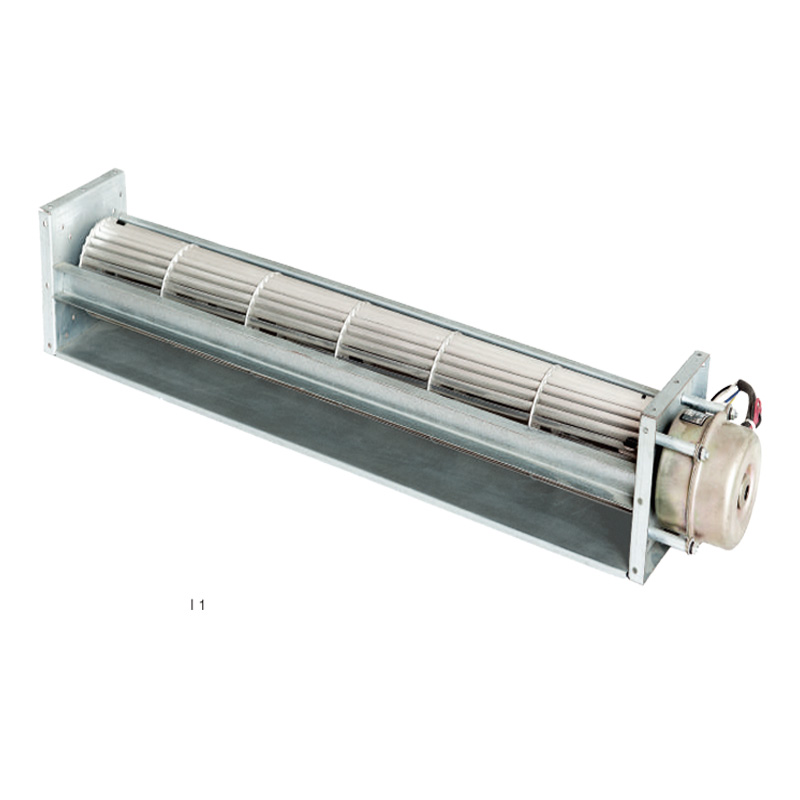

The PC120B2A195L AC cross flow fan is specifically designed for high‑power heating and heat supply equipment, including large electric fireplaces, wood‑burning stoves, fan heaters, and industrial‑grade convection heaters. This cross flow fan for electric fireplace and wood stove offers an optional 0‑10V DC/PWM stepless speed control input, allowing system integrators to dynamically adjust fan speed based on real‑time heat load or ambient temperature. Compared to traditional fixed‑speed AC fans, it achieves energy consumption optimization across the entire operating range, making it an ideal energy efficient AC cross flow fan for industrial convection heater applications.
With over 15 years of expertise in EC/AC motor and fan technology, PBM provides full engineering support from demand analysis, selection evaluation, and prototype testing through to mass production delivery. Whether you need a variable speed cross flow fan for large electric fireplace or a customized thermal management solution for wood burning stove, our technical team is ready to assist. We support customized cross flow fan services – including speed control interfaces, lead wire configurations, and mounting brackets—to perfectly match your heating equipment requirements.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Rated Speed |
1400 RPM |
|
1-4 |
Input Current |
0.27 A |
|
1-5 |
Input Power |
40 W |
|
1-6 |
Acoustical Noise |
58 dBA |
|
1-7 |
Life Expectancy |
30,000 Hours At nominal supply voltage, full speed room temperature 20℃. |
|
1-8 |
Direction of Rotation |
Clockwise seen on rotor |
|
1-9 |
Airflow |
502 m³/H |
|
1-10 |
Air Pressure |
95 Pa |
Mechanical Characters
|
2-1 |
Dimension |
see dimension drawing |
|
2-2 |
Material of Impeller |
Aluminum alloy |
|
2-3 |
Number of Blades |
28 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
Red, Black, AWG #20 |
Environmental Characters
|
3-1 |
Operating Temperature |
-20℃ to 70℃ |
|
3-2 |
Storage Temperature |
-40℃ to 80℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

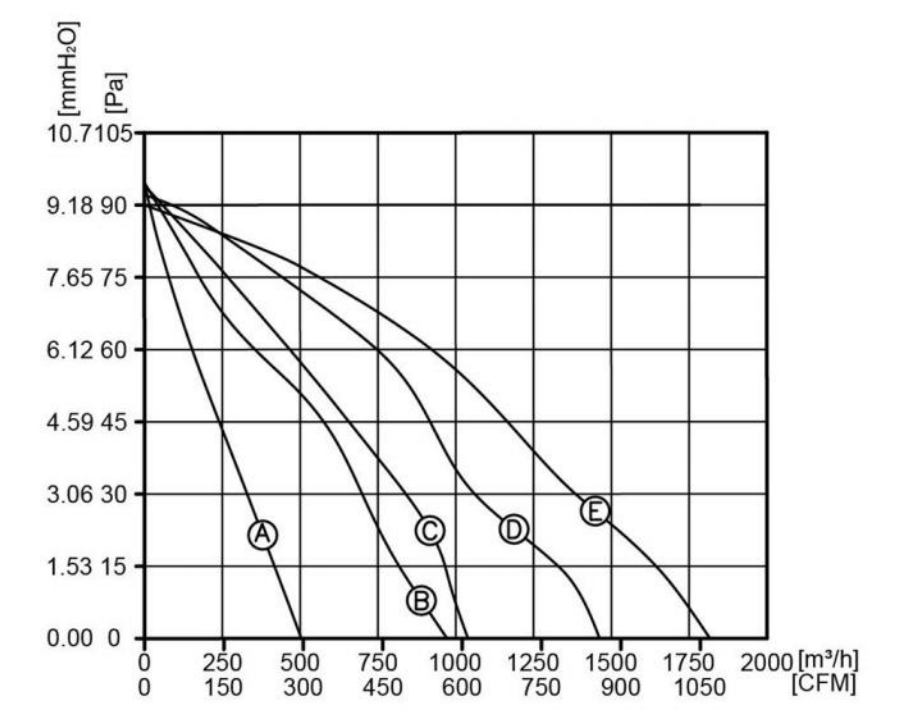

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

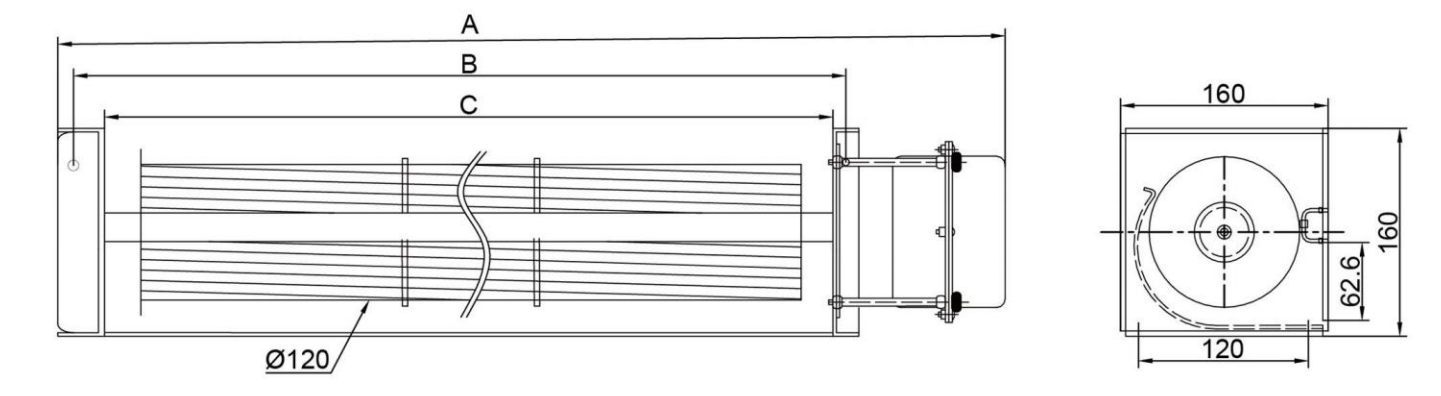

Outline Drawing
Note:
1.Connection line: Red, Black, AWG#20;
2.Red=Live Line, Black=Null line.
