The PS3N180B2E-MZ1 260×280×125mm IP55 EC‑AC single inlet blower is a fully sealed, high‑efficiency centrifugal fan engineered for demanding applications that require high static pressure and robust protection against moisture and dust – including dishwashers, commercial condensing drying equipment, and air purification systems. Operating at 230V AC rated voltage, 2100 RPM, delivering 752 m³/h airflow and 610 Pa static pressure, this IP55 rated single inlet centrifugal blower for dishwashers and high static pressure condenser dryer fan leverages advanced EC motor technology to achieve significant energy savings across all operating conditions, with an input power of 220 W and current draw of 1.5 A.
The EC motor maintains high efficiency across the 10%–100% load range typical of dishwasher applications, delivering 20%–40% energy savings at partial loads – ideally suited for the variable airflow demands of different drying cycles. PBM offers comprehensive OEM customization for dishwasher and drying equipment, including corrosion‑resistant surface treatments, customized lead wire routing and length, and mounting structure adaptations to ensure seamless integration with dishwasher interiors and condenser channels. Whether you need a high‑performance axial fan for commercial kitchen equipment or a durable blower for industrial air purification, PBM delivers precision‑engineered solutions with full engineering support from prototype to production.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 2100 RPM |
|
1-5 |
Input Current |
1.5 A |
|
1-6 |
Input Power |
220 W |
|
1-7 |
Air Flow |
442.55 CFM / 752 M³/H |
|
1-8 |
Static Pressure |
2.44 inH2O / 610 Pa |
|
1-9 |
Acoustical Noise |
72 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
260 mm X 280 mm X 125 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Cold rolled steel sheet |
|
2-3 |
Number of Blades |
38 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#)，DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

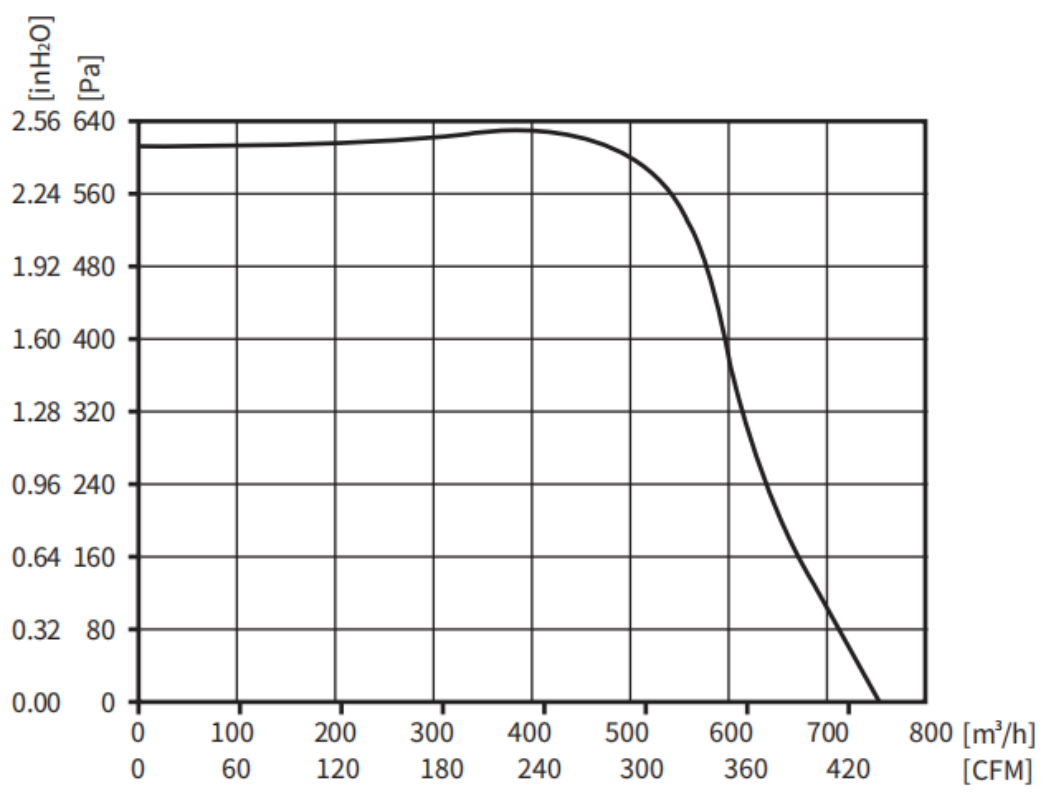

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

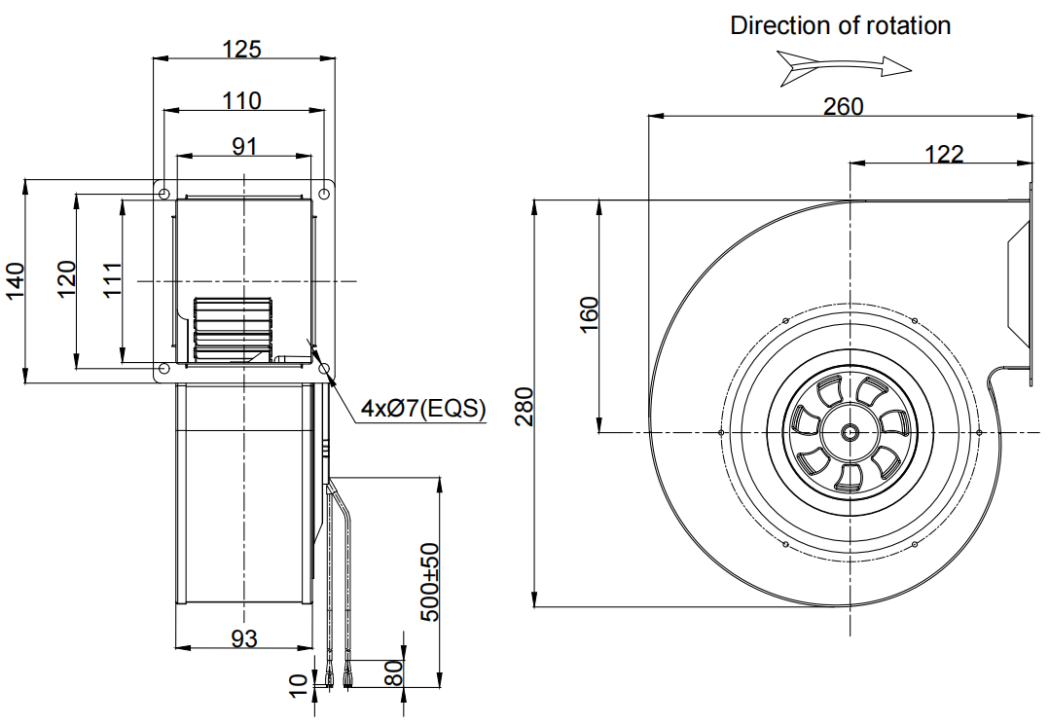

Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG24#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
