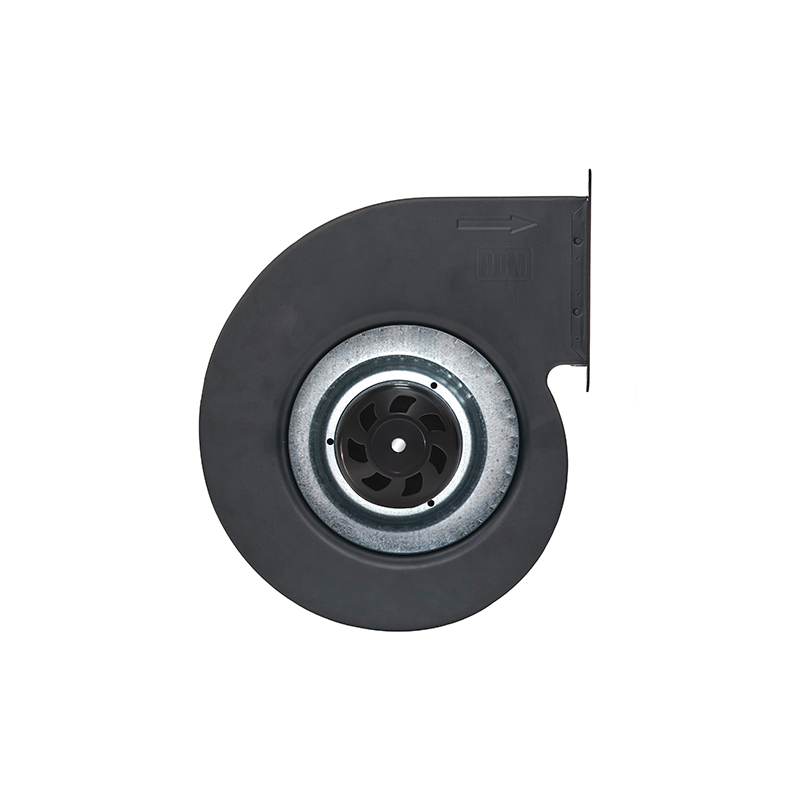

The PS3N180B2E-MZ0 180mm IP55 EC‑AC single inlet centrifugal blower is a high‑efficiency AC‑driven fan engineered specifically for applications that demand high static pressure and IP55‑grade protection against moisture and dust – including dishwashers and commercial condensing drying equipment, air purification and ventilation systems, and industrial dust extraction and material drying systems. In dishwasher and condenser dryer applications, this blower delivers powerful static pressure to drive hot, humid steam through condenser channels for efficient heat exchange and condensate removal, reliably withstanding high‑temperature, high‑humidity conditions and corrosive detergent residues. For air handling units (AHUs) and energy recovery ventilators (ERVs), its 800 Pa high static pressure overcomes the accumulated resistance of HEPA filters to maintain consistent system airflow, while in material drying systems and workshop exhaust, it effectively removes process heat, vapors, and airborne particulates.
The forward‑curved blade impeller – with blades bending in the direction of rotation – achieves higher pressure at lower tip speeds, making this compact high‑pressure centrifugal fan particularly well‑suited for space‑constrained applications that demand elevated static pressure, such as dishwasher condensing systems, commercial kitchen exhaust equipment, and air purification systems. With its IP55‑rated fully sealed construction and EC‑AC motor technology, the PS3N180B2E-MZ0 delivers energy‑efficient, reliable performance across a broad range of demanding commercial and industrial ventilation scenarios.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 1800 RPM |
|
1-5 |
Input Current |
1.55 A |
|
1-6 |
Input Power |
220 W |
|
1-7 |
Air Flow |
529.65 CFM / 900 M³/H |
|
1-8 |
Static Pressure |
3.20 inH2O / 800 Pa |
|
1-9 |
Acoustical Noise |
68 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
262 mm X 279 mm X 170 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Cold rolled steel sheet |
|
2-3 |
Number of Blades |
38 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#)，DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |
Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH
Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG24#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
