The PA3N200B2E-SN0 200mm IP55 EC-AC axial fan is a high‑efficiency AC‑driven cooling solution engineered for demanding industrial and commercial ventilation scenarios that require robust ingress protection and superior energy performance. It serves as a dedicated biological safety cabinet fan, delivering 200 Pa static pressure to overcome the resistance of high‑efficiency particulate air (HEPA) filters and cabinet ductwork, ensuring stable airflow and secure isolation within the operator area. Beyond laboratory applications, this IP55 rated axial fan for electrical control cabinets provides high‑volume heat dissipation for variable frequency drives, PLC control cabinets, UPS systems, and server racks – effectively expelling heat to prevent component overheating, while its dust‑tight and water‑resistant design reliably withstands harsh industrial environments. In factory and workshop ventilation, it promptly removes process‑generated heat, exhaust gases, and airborne particulates to significantly improve working conditions.
With its fully sealed IP55 enclosure and EC‑AC motor technology, the PA3N200B2E-SN0 delivers energy‑efficient, maintenance‑friendly operation across a wide range of applications – from laboratory safety equipment and industrial automation enclosures to manufacturing facility air exchange. PBM offers OEM customization including lead wire configurations and mounting adaptations, ensuring seamless integration into your specific equipment design. Whether you are developing biological safety cabinets, industrial control panels, or factory ventilation systems, this fan provides the airflow, static pressure, and protection your application demands.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 4100 RPM |
|
1-5 |
Input Current |
0.85 A |
|
1-6 |
Input Power |
115 W |
|
1-7 |
Air Flow |
971.03 CFM / 1650 M³/H |
|
1-8 |
Static Pressure |
0.8 inH2O / 200 Pa |
|
1-9 |
Acoustical Noise |
66 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø200 mm X 72.5 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA66+GF |
|
2-3 |
Number of Blades |
7 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#)，DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

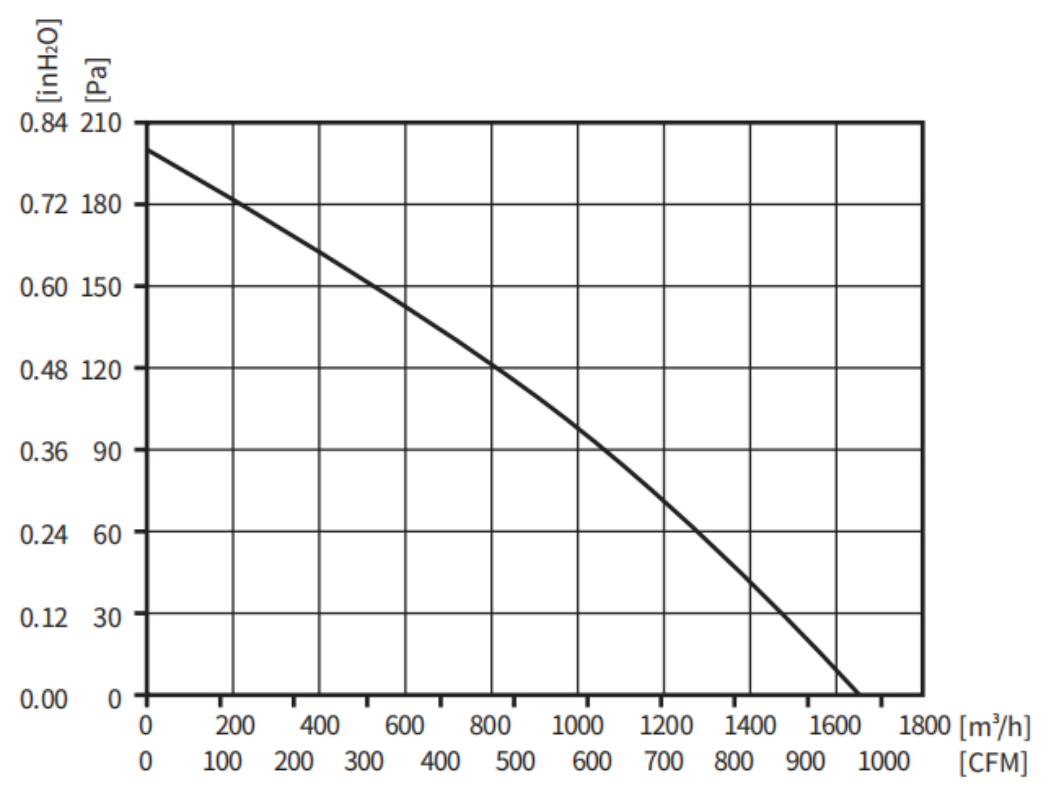

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

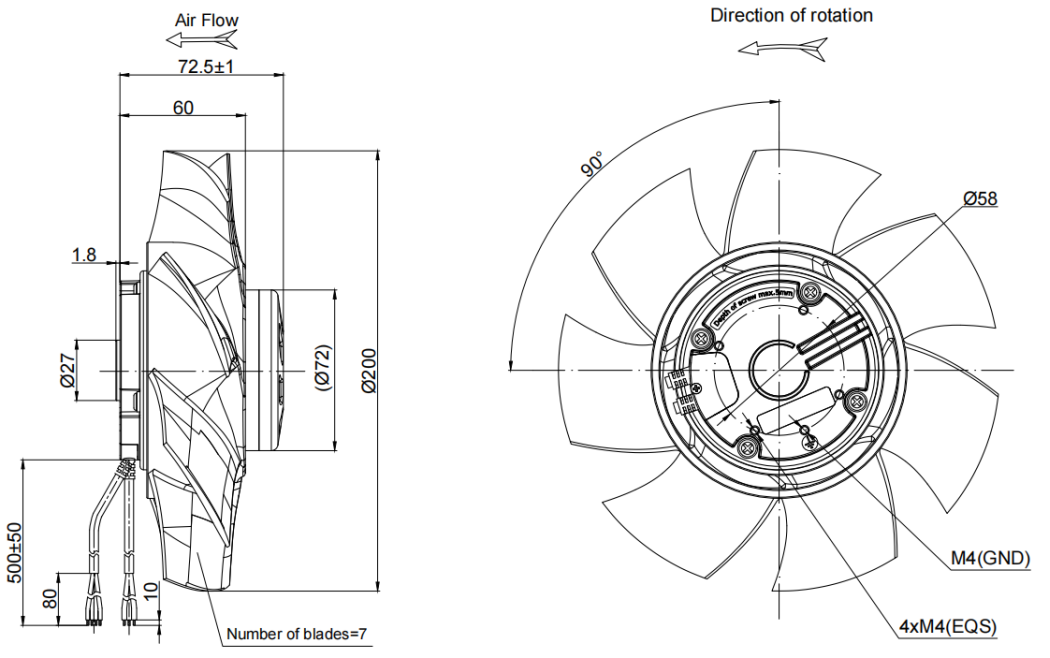

Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG24#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
