The PB3N225B2E-RG0 225mm IP55 EC-AC Backward Curved Centrifugal Fan is designed for cleanroom systems and FFU fan filter units in semiconductor cleanrooms, pharmaceutical workshops, and biological laboratories — overcoming HEPA filter resistance and maintaining laminar flow clean environments in medium-to-high static pressure industrial ventilation applications requiring waterproof and dustproof protection.
Powered by EC motor technology, this backward curved centrifugal fan delivers significant energy savings compared to traditional AC induction motors. The fan supports 0–10V DC / PWM dual-mode stepless speed control input for flexible system integration.
PBM provides more than just standard fan components — we offer complete industrial ventilation solutions throughout the entire R&D process, from demand analysis to mass production.
Choose the PB3N225B2E-RG0 for a high static pressure, low noise, IP55 EC-AC backward curved centrifugal fan for your most demanding cleanroom and FFU applications.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 2300 RPM |
|
1-5 |
Input Current |
0.6 A |
|
1-6 |
Input Power |
85 W |
|
1-7 |
Air Flow |
573.79 CFM / 975 M³/H |
|
1-8 |
Static Pressure |
2.48 inH2O / 620 Pa |
|
1-9 |
Acoustical Noise |
65 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø225 mm X 99 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA66+GF |
|
2-3 |
Number of Blades |
7 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#)，DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |
Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

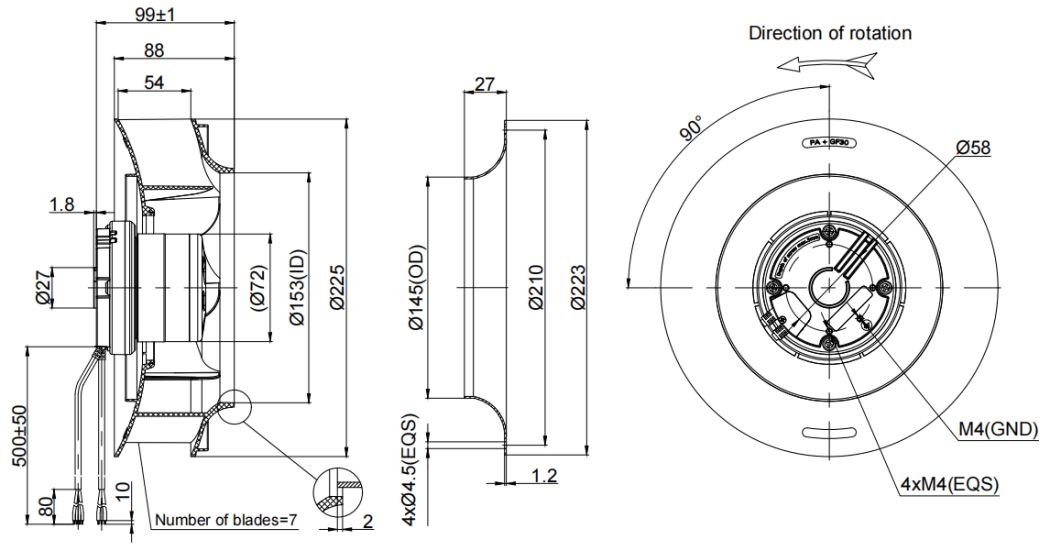

Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG24#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
