The PA4010B05H 40x40x10mm DC axial fan is a high‑efficiency, compact cooling solution designed for space‑constrained applications including PCBA board‑level heat dissipation, 3D printer nozzle and main control module cooling, networking equipment (router/switch) , industrial control cabinets, automation equipment cooling, and small medical diagnostic instruments.
With an ultra‑thin 10mm profile, this dc fan can be embedded into variable frequency drive heatsink assemblies, motor driver enclosures, and automation equipment control boxes – especially wall‑mounted slim devices. Its axial airflow pattern (intake and exhaust along the axis) provides reliable forced convection cooling for critical heat sources such as IGBT power modules, integrated bridge rectifiers, and embedded industrial motherboards.
PBM offers OEM custom axial fan services according to your assembly requirements. Whether you are developing networking and communication equipment, 3D printer devices, industrial automation control systems, small medical instruments, or home appliances, the PBM technical team provides full engineering support – from sample validation to mass production delivery.
General Characters
|
1-1 |
Rated Voltage |
5 VDC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
4.5~5.5 VDC |
|
1-4 |
Rated Speed |
8000 RPM |
|
1-5 |
Input Current |
0.22 A |
|
1-6 |
Input Power |
1.1 W |
|
1-7 |
Air Flow |
15.6 M³/H/9.25 CFM |
|
1-8 |
Static Pressure |
49.98 Pa/0.20 |
|
1-9 |
Acoustical Noise |
33 dB(A) |
|
1-10 |
Life Expectancy |
50,000 Hours (L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP44 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Φ40x40x10 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
Thermal Plastic |
|
2-3 |
Bearing System |
Ball bearing |
|
2-4 |
Lead Wire |
Red (+), Black (-): UL1007 #26 AWG (300 ± 10 mm) |
Environmental Characters
|
3-1 |
Operating Temperature |
-20℃ to 65℃ |
|
3-2 |
Storage Temperature |
-25℃ to 70℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |

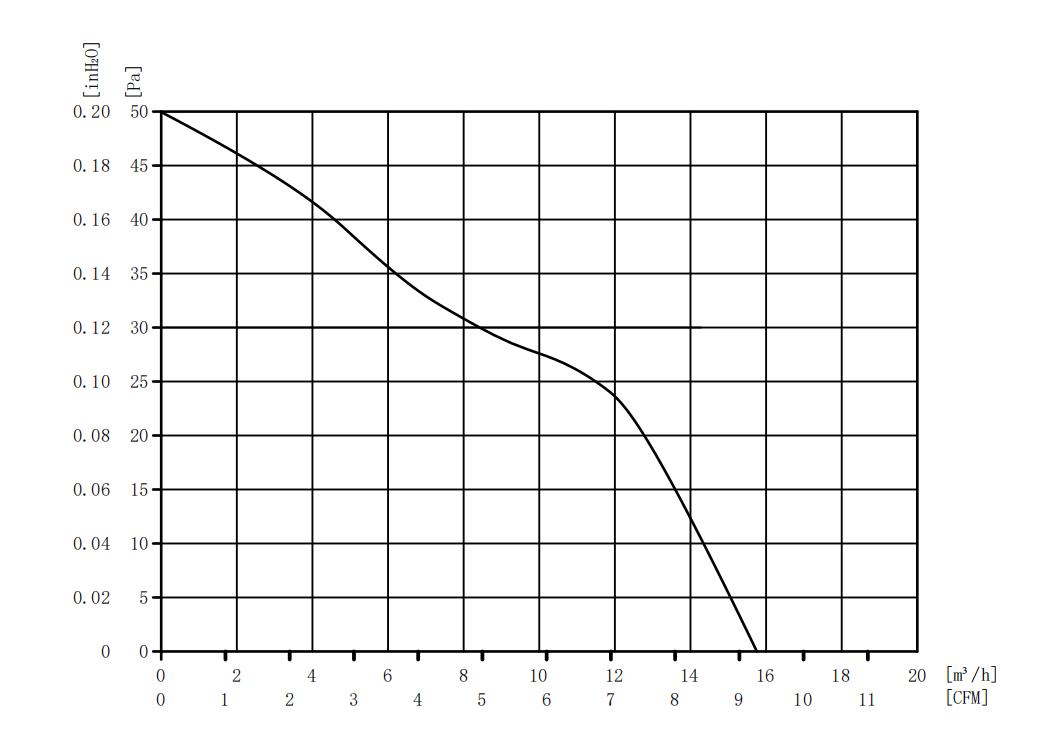

Performance Curve
Testing Condition:
Input Voltage----Operating voltage (5VDC)
Temperature-----Room temperature
Humidity---------65%RH

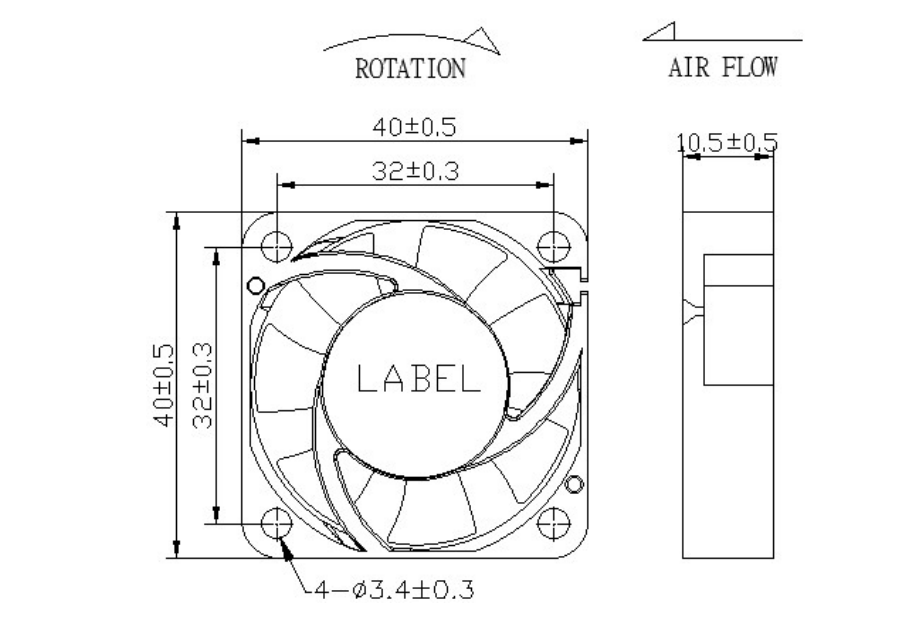

Outline Drawing
