This PG3N350B2E-MZ0 IP55 EC-AC axial fan is a high-performance ventilation solution engineered for industrial plant ventilation systems, HVAC equipment, and telecom base station cooling applications demanding high airflow with robust dust and water ingress protection. Powered by a 230V AC rated motor (operating range 184–276V AC, 50/60Hz compatible) at 1580 RPM, it delivers 3500 m³/h (2059.75 CFM) airflow with 230 Pa (0.92 inH₂O) static pressure. The fully sealed IP55-rated construction ensures reliable operation against dust and water jets, while the overall dimensions of 422mm×116.5mm (including guide ring) enable flexible system integration.
Driven by advanced EC motor (electronically commutated brushless) technology, this fan achieves significant energy savings compared to traditional AC induction motors, with input power of just 200 W and current draw of 1.5 A. With over 15 years of expertise in EC/AC motor and fan technology, PBM ensures each axial fan strictly complies with international safety standards (CE certified). The IP55 ingress protection rating makes this model ideally suited for industrial plant ventilation, HVAC equipment, telecom base stations, and other demanding environments where both high airflow and reliable protection are essential.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 1580 RPM |
|
1-5 |
Input Current |
1.5 A |
|
1-6 |
Input Power |
200 W |
|
1-7 |
Air Flow |
2059.75 CFM / 3500 M³/H |
|
1-8 |
Static Pressure |
0.92 inH2O / 230 Pa |
|
1-9 |
Acoustical Noise |
67 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class B |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø422 mm X 116.5 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA66+GF |
|
2-3 |
Number of Blades |
5 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG20#)，DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |
Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

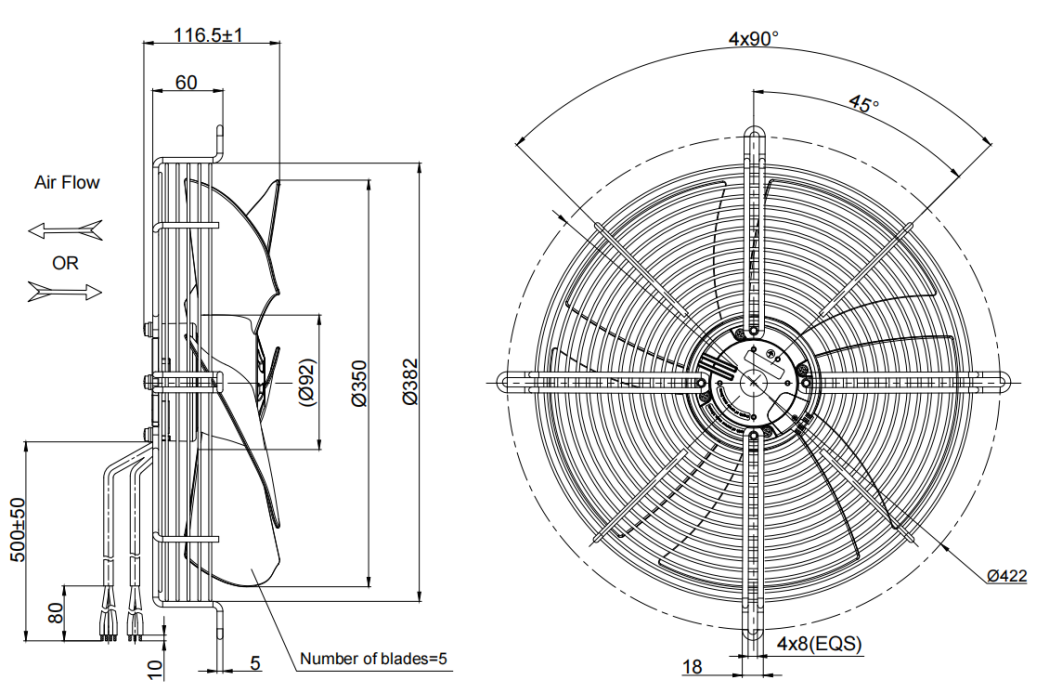

Outline Drawing
Note:
1.Connection line: AC(3×AWG20#)，DC(4×AWG24#)
2.AC: Brown=Live Line，Blue=Null Line，Green & Yellow=Protecting Earthing;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;
