This PG3N400B2E-ZN5 IP55 EC-AC axial fan is a high-performance ventilation solution engineered for roof ventilation systems, industrial plant exhaust, HVAC fresh air systems, and other demanding applications requiring ultra-high airflow with robust dust and water ingress protection. Powered by a 230V AC motor at 1800 RPM, it delivers an exceptional 5900 m³/h airflow with 300 Pa static pressure. The fully sealed IP55-rated construction ensures reliable operation in outdoor and harsh industrial environments, while the Ø400×177mm design enables robust system integration.
Operating noise is controlled at 73 dB(A) – balancing high-performance output with user experience in ventilation equipment and industrial settings. For intelligent system integration, this fan supports 0-10V DC and PWM dual-mode stepless speed control, allowing system integrators to dynamically adjust fan speed based on real-time ventilation demands for precise airflow management and energy optimization. The integrated FG (frequency generator) tachometer feedback signal output enables the main control board to monitor real-time fan status, supporting closed-loop speed regulation and predictive fault alerts.
With over 15 years of expertise in EC/AC motor and fan technology, PBM ensures each axial fan strictly complies with international safety standards (CE certified). Our technical sales team provides full engineering support from sample validation to mass production delivery, ensuring seamless integration and reliable performance for your critical ventilation applications.
General Characters
|
1-1 |
Rated Voltage |
230 VAC |
|
1-2 |
Frequency |
50/60 Hz |
|
1-3 |
Operating Voltage |
184~270 VAC |
|
1-4 |
Rated Speed | 1800 RPM |
|
1-5 |
Input Current |
3.1 A |
|
1-6 |
Input Power |
700 W |
|
1-7 |
Air Flow |
3472.15 CFM / 5900 M³/H |
|
1-8 |
Static Pressure |
1.20 inH2O / 300 Pa |
|
1-9 |
Acoustical Noise |
73 dB(A) |
|
1-10 |
Life Expectance |
50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH. |
|
1-11 |
Insulation Class |
Class F |
|
1-13 |
Motor Protection |
Locked rotor protection Polarity protection Automatic restart capability |
|
1-14 |
Speed Control |
Control input 0~10VDC / PWM |
|
1-15 |
Protection Type |
IP55 |
|
1-17 |
Signal Output |
FG (Frequency Generator) |
Mechanical Characters
|
2-1 |
Dimension |
Ø400 mm X 177 mm (see dimension drawing) |
|
2-2 |
Material of Impeller |
PA66+GF |
|
2-3 |
Number of Blades |
5 |
|
2-4 |
Bearing System |
NMB ball bearing |
|
2-5 |
Lead Wire |
AC (AWG18#)，DC (AWG24#) |
Environmental Characters
|
3-1 |
Operating Temperature |
-25℃ to 60℃ |
|
3-2 |
Storage Temperature |
-40℃ to 75℃ |
|
3-3 |
Operating Humidity |
5% to 90% RH |
|
3-4 |
Storage Humidity |
5% to 95% RH |
Performance Curve
Testing Condition:
Input Voltage----Operating voltage (230VAC/50Hz)
Temperature-----Room temperature
Humidity---------65%RH

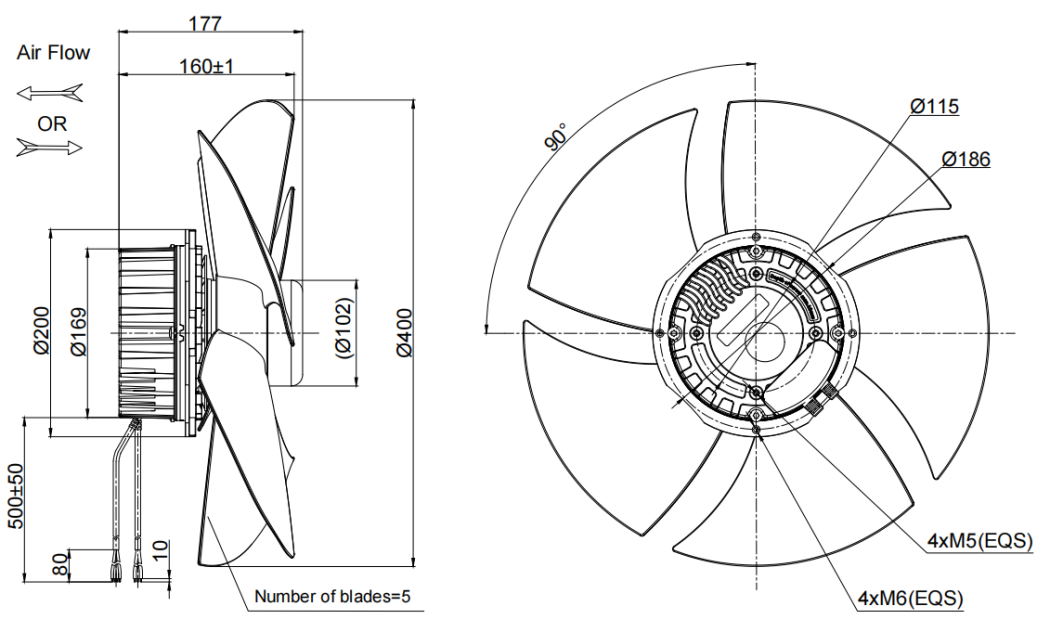

Outline Drawing
Note:
1.Connection line: AC(5×AWG18#)，DC(6×AWG24#)
2.AC: Brown=Live Line，Black=Null Line，Green & Yellow=Protecting Earthing,White=NC，Gray=COM;
3.DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, Blue=GND, White=Tach output, Brown=RSA, Gray=RSB ;
